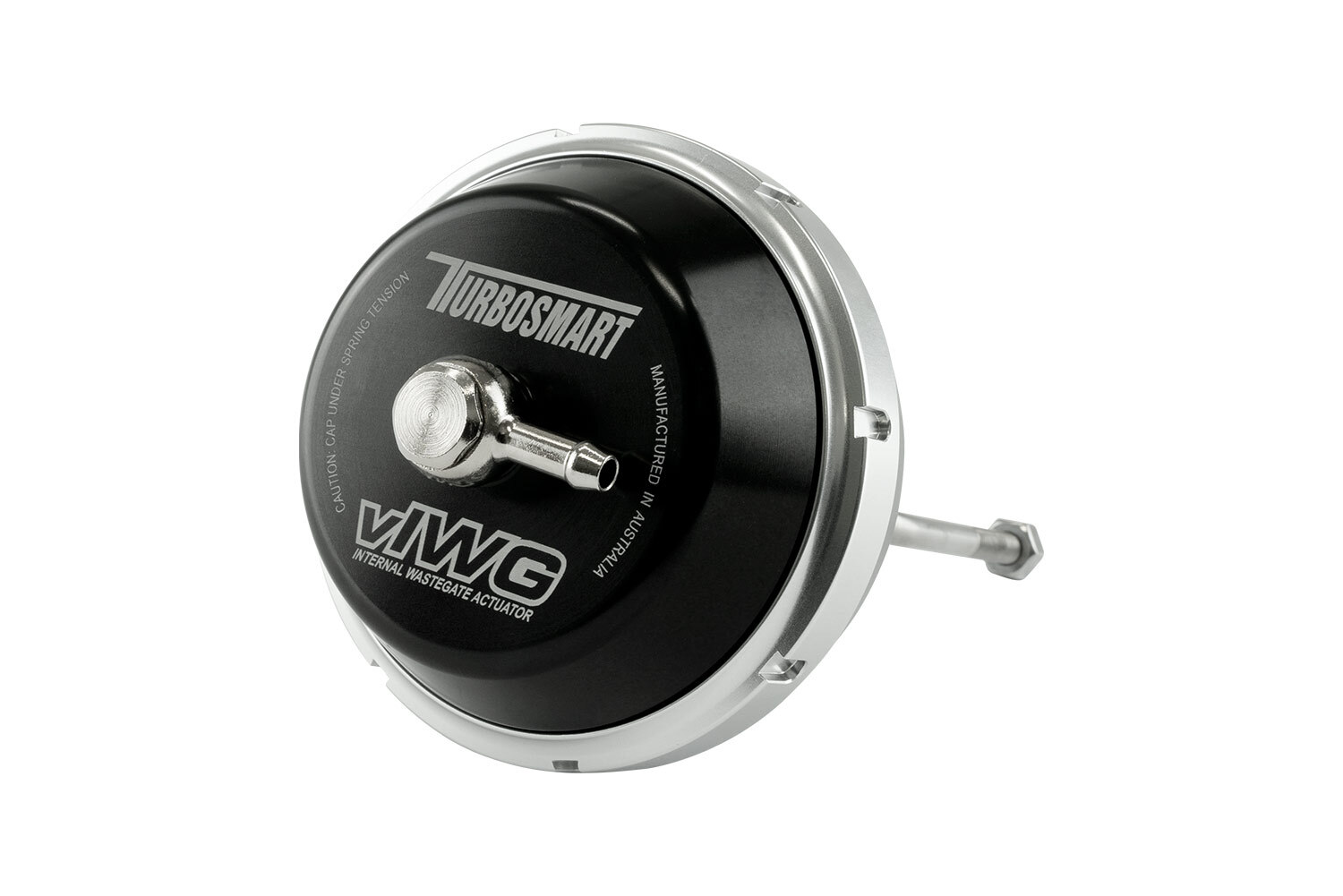

Turbosmart Upgraded Vacuum-operated Wastegate Actuators have been developed to provide the maximum possible boost response for your factory frame turbocharger. The Turbosmart vIWG Series of upgraded Actuators benefit from an increased 'Working Ratio' over the factory equipment resulting in improved boost response, throughout the RPM range.

This Improved 'working ratio' is achieved through an increase to the effective surface area of the diaphragm & revisions to the actual springs fitted resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.

Upgrading with the same base pressure as factory, you can expect a broader boost & torque curve through peak boost being achieved earlier in the RPM and being held longer, into higher RPM. These improvements can be amplified with higher base pressures, however tuning & recalibration is recommended for optimal performance.

Features
Proprietary Silicon Nomex Diaphragm
High-Grade Billet Aluminum Construction
Stainless Steel Rods and Clevis
Turbosmart Unique Locking Collar System

This is a bolt-on fitment for the factory turbocharger as fitted to the 2.0L BMW N20 Turbo engine with a pneumatic vacuum actuator.

SUITABLE FOR

• Various BMW models with N20 (N20A20 and N20B20) engines where a vacuum pneumatic actuator is fitted.
• *Not Suitable for Engines fitted with an electronic actuator.
