Turbosmart Upgraded Wastegate Actuators have been developed to provide maximum possible boost response for your factory frame turbocharger. The Turbosmart IWG75 Series of upgraded Actuators benefit from an increased 'Working Ratio' over the factory equipment resulting in improved boost response, throughout the RPM range.

This Improved 'working ratio' is achieved through an increase to the effective surface area of the diaphragm & revisions to the actual springs fitted resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.

Upgrading with the same base pressure as factory, you can expect a broader boost & torque curve through peak boost being achieved earlier in the RPM and being held longer, into higher RPM. These improvements can be amplified with higher base pressures, however tuning & recalibration is likely required.

Features
Proprietary Silicon Nomex Diaphragm
Choice of Springs from 3psi to 26psi (Optional)
High Grade Billet Aluminum Construction
Stainless Steel Rods and Clevis
Turbosmart Unique Locking Collar System

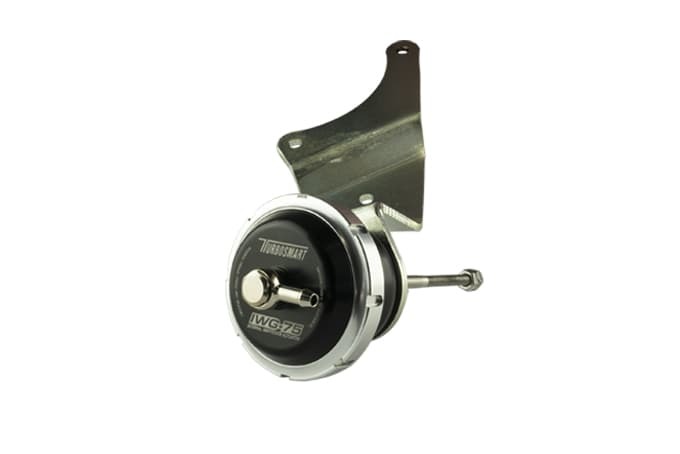

This is a bolt on IWG75 Actuator Upgrade to suit the factory K03 turbocharger as fitted to the 1.8 Turbo engines fitted to the VW Golf, Audi A3, Skoda Octavia and Seat Leon.

SKU TS-0645-3052
Barcode # 9329677017038
Brand TURBOSMART
Shipping Weight 0.6000kg
Shipping Width 0.090m
Shipping Height 0.100m
Shipping Length 0.290m
Shipping Cubic 0.002610000m3
