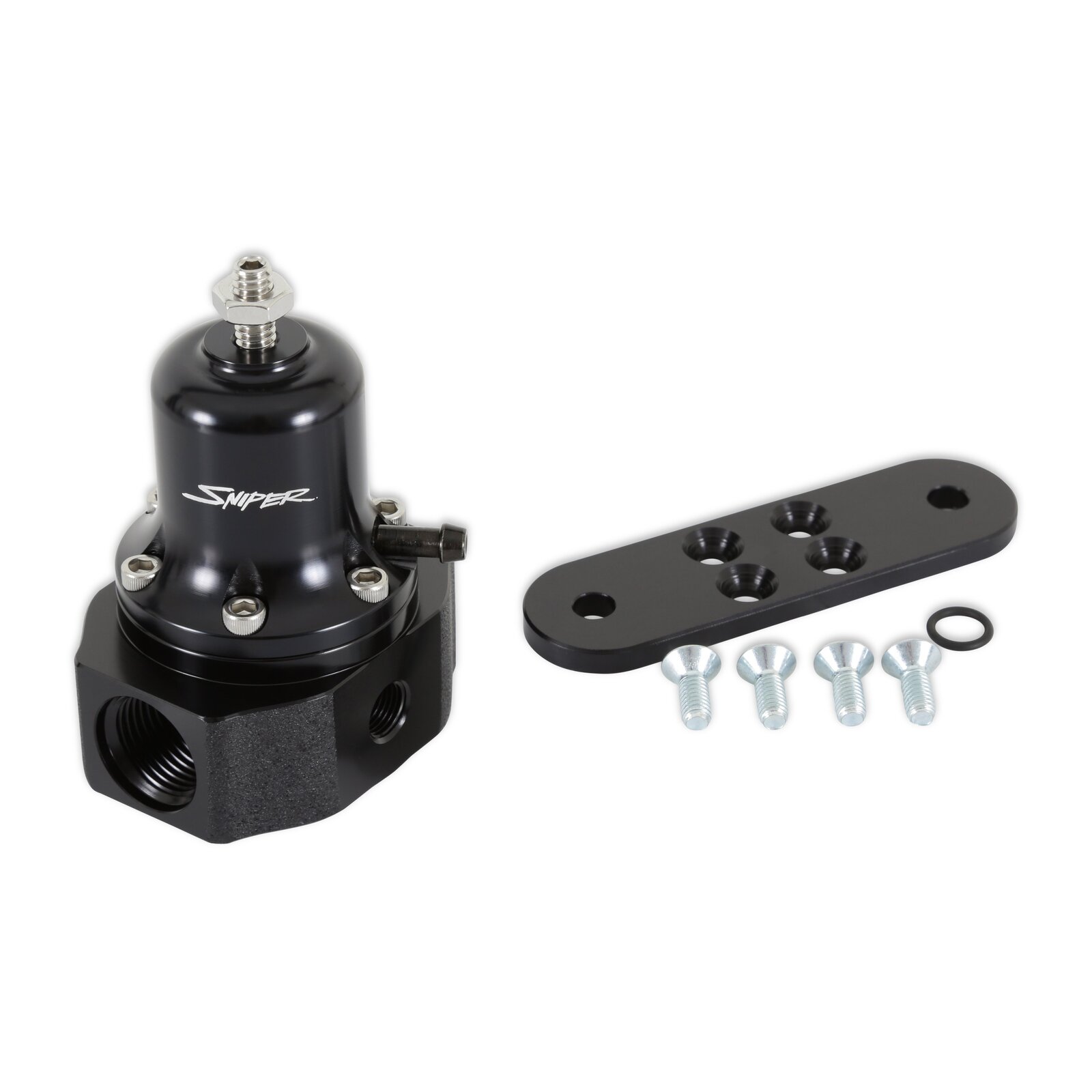

Sniper EFI 40-130 psi Fuel Regulator 8AN Boost Reference 1:1

Sniper EFI universal bypass fuel pressure regulators are for use with fuel systems in street or track applications. They feature adjustable base pressure from 40-130 psi, a gauge port, and a boost reference port as well. These regulators are ideal for vehicles/systems where superior flow and pressure control are needed. These regulators are precision machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks.

Features:

  • Longer spring for wider range of adjustment (40-130 psi)
  • Features an oversized bypass orifice and corrugated diaphragm for superior flow
  • Constructed of billet aluminum with a black anodized base and top for good looks
  • Offered in -6 and -8 ORB configurations
  • Used in systems with a return line back to tank
  • 1/8-inch NPT Boost Reference Port (Ratio 1:1)
  • 1/8-inch NPT Fuel Gauge Port
  • Alcohol fuel and race gas compatible
  • Includes mounting bracket, hardware, and an 1/8-inch NPT barb fitting for manifold reference

Specs:

Adjustable Yes
Brand Holley Sniper EFI
Emission Code 5
Fuel Type Gasoline/Alcohol
Gauge Included No
Gauge Port Included Yes
Grade Type Performance
Inlet Gender Female
Inlet Port Diameter 3/4-16 IN
Inlet Type ORB
Maximum Pressure 130 PS
Minimum Pressure 40 PS
Mounting Bracket Included Yes
Outlet Gender Female
Outlet Port Diameter 3/4-16 IN
Outlet Type ORB
Port Quantity 3
Pressure Rating 40-130 PS
Product Type Fuel Pressure Regulator
Rebuildable Yes
Style Return Style
Vacuum Port Quantity 1
Warranty Limited 1 Year Warranty
UPC 090127142851
Part Number 19-395
SKU 19-395
Barcode # 90127142851
Brand Holley Sniper
Shipping Weight 0.3700kg
Shipping Width 0.090m
Shipping Height 0.110m
Shipping Length 0.120m
