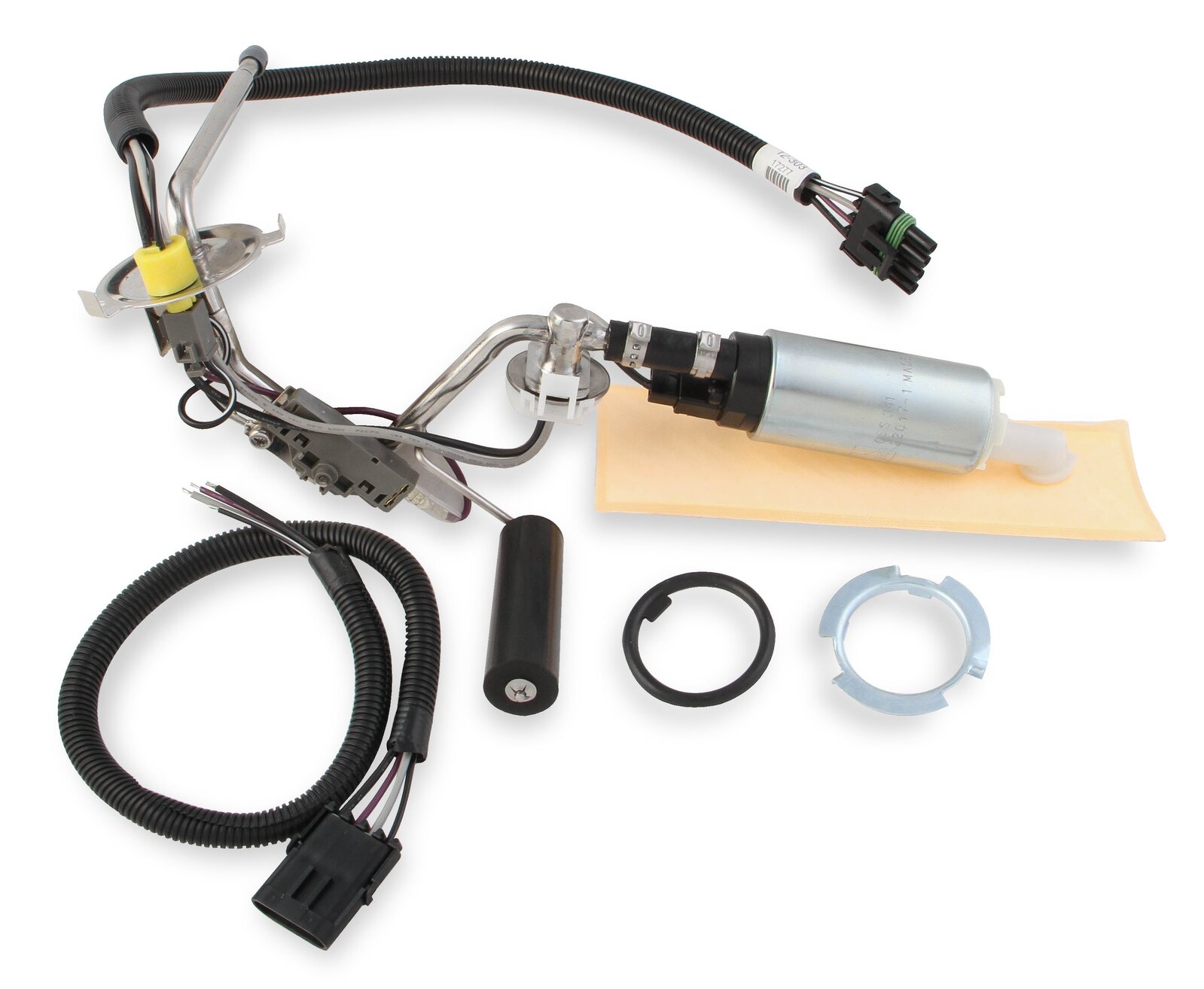

In-tank fuel pump module for 1968-1972 Chevelle, Malibu, El Camino & GM A-Body. Supports Up To 750 Horsepower.

This in-tank fuel pump module is a high-pressure unit that flows 350 liters per hour (LPH) and is capable of supporting electronic fuel injection (EFI) engines producing up to 750 horsepower. Featuring a pre-calibrated fuel-level sending unit designed to work with the factory fuel gauge for this application is included. This module also features a HydraMat filter which has a unique internal reservoir that keeps fuel available at the pick-up and also provides protection from contaminates Fuel pressure is internally regulated to 58 psi eliminating the added expense and effort of purchasing and installing an external fuel pressure regulator - no separate return line is required because this module returns excess fuel right inside the tank! This 1968-1972 GM A-body Muscle Car EFI Fuel Pump module was designed as a direct replacement for your factory pick-up and sending unit. There is no need to purchase a custom EFI fuel tank. You can even retain the factory fuel hard line - just connect the outlet of the pump module to the hard line on your vehicle with EFI-rated fuel hose and hose clamps available in the Earls Vapor Guard line. This Muscle Car EFI Module includes a 350 LPH fuel pump and a Holley HydraMat. HydraMat is an amazing patent-pending fuel reservoir system that reduces fuel starvation issues that might otherwise occur while cornering, accelerating, stopping, traversing inclines, and during low fuel conditions.

Specs:

Application 1968-1972 GM A-Body
Average Flow Rating 350 LPH
Brand Holley Sniper EFI
Connector Gender Male
Emission Code 5
Free Flow LPH 350
Fuel Filter Included Yes
Fuel Sending Unit Included Yes
Fuel Sending Unit Ohms 0-90 Ohms
Fuel Tank Pressure Sensor Included No
Fuel Type Gasoline
Gasket Or Seal Included Yes
Grade Type Performance
In Tank or External In Tank
Inlet Diameter (in) 5/16 IN
  5/16"
Lock Ring Included Yes
Material Steel and Plastic
Maximum Pressure 58 PS
Negative Ground Yes
Outlet Outside Diameter 3/8 IN
Outlet Quantity One
Product Type Fuel Pump Module
Pump Type Electric
Regulator Included Yes
Resistance Ohms Empty 0 82
Resistance Ohms Full 90 82
Sale Category Air and Fuel Delivery
Universal Or Specific Fit Specific
Vent Size N/A
Warranty Limited 90 Day
Wire Harness Included Yes
UPC 090127123058
Part Number 12-373
SKU 12-373
Barcode # 90127123058
Brand Holley Sniper
Shipping Weight 0.8800kg
Shipping Width 0.210m
Shipping Height 0.210m
Shipping Length 0.340m
