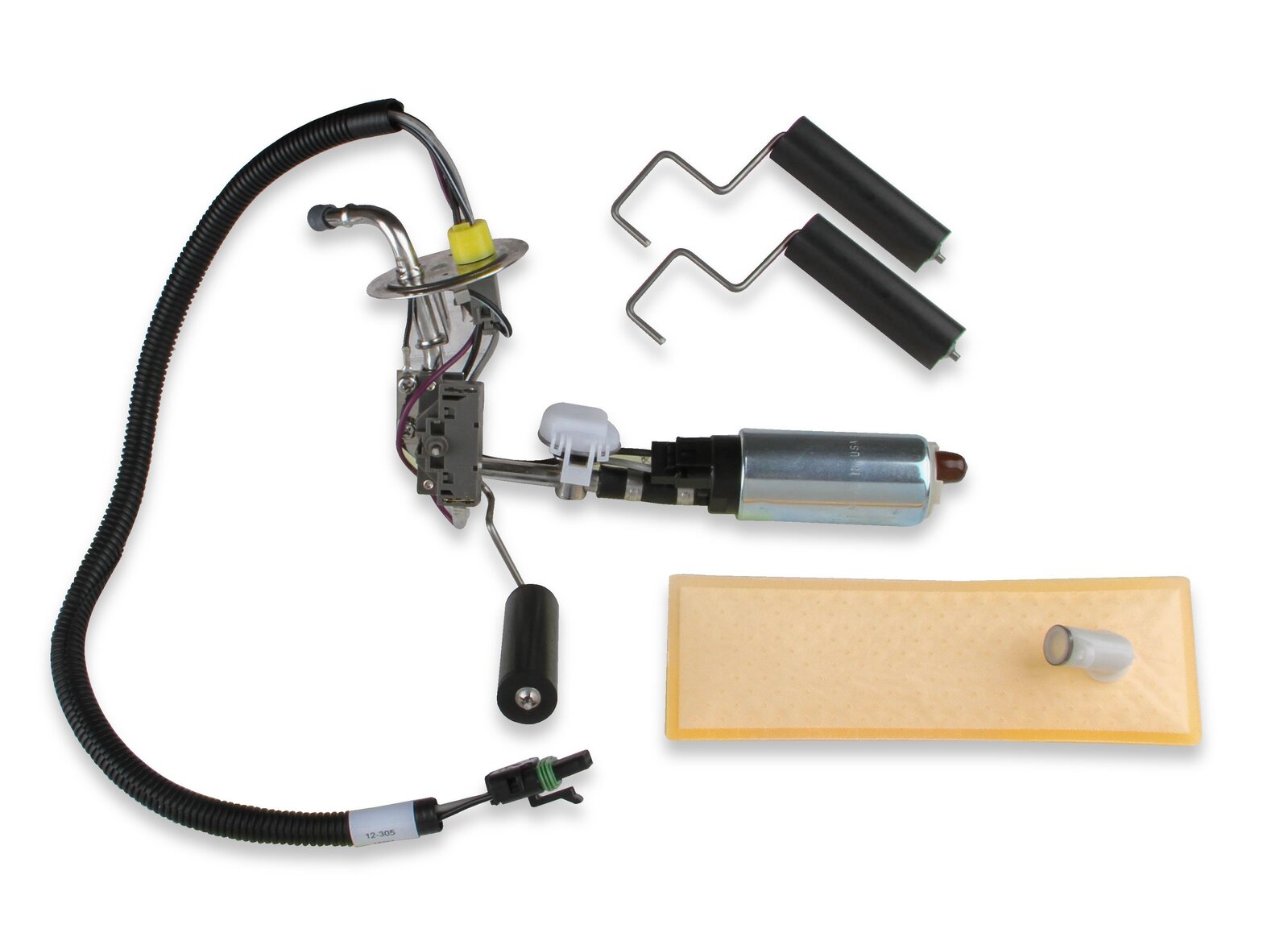

Holley Sniper EFI Fuel Tank Module - 350 LPH - Mustang, Falcon & Cougar
SKU code: 12-375
In-tank fuel pump module for 1964-1970 Ford Mustang, 1960-1965 Falcon & 1967-1970 Cougar. Supports Up To 750 Horsepower.
This in-tank fuel pump module is a high-pressure unit that flows 350 liters per hour (LPH) and is capable of supporting electronic fuel injection (EFI) engines producing up to 750 horsepower, Featuring a pre-calibrated fuel-level sending unit designed to work with the factory fuel gauge for this application is included. This module also features a HydraMat filter which has a unique internal reservoir that keeps fuel available at the pick-up and also provides protection from contaminates Fuel pressure is internally regulated to 58 psi eliminating the added expense and effort of purchasing and installing an external fuel pressure regulator - no separate return line is required because this module returns excess fuel right inside the tank! This 1964-70 Mustang Muscle Car EFI Fuel Pump module was designed as a direct replacement for your factory pick-up and sending unit. There is no need to purchase a custom EFI fuel tank. You can even retain the factory fuel hard line - just connect the outlet of the pump module to the hard line on your vehicle with EFI-rated fuel hose and hose clamps available in the Earls Vapor Guard line. This Muscle Car EFI Module includes a 350 LPH fuel pump and a Holley HydraMat. HydraMat is an amazing patent-pending fuel reservoir system that reduces fuel starvation issues that might otherwise occur while cornering, accelerating, stopping, traversing inclines, and during low fuel conditions. This new kit has all of the extra components to fit all three sizes of Mustang fuel tanks from 1964-1970. You choose which fuel gauge float arm for your factory fuel tank size! Fitment: 1964-68 Mustang -16 gallon tank 1969 Mustang- 20 gallon tank 1970 Mustang- 22 gallon tank 1960-1965 Falcon- 16 gallon tank 1960-1963 Comet- 16 gallon tank
Specs:
Application | 1960-1963 Mercury Comet, 1960-65 Ford Falcon, 1964-1970 Mustang, 1967-1970 Mercury Cougar |
---|---|
Average Flow Rating | 350 LPH |
Brand | Holley Sniper EFI |
Connector Gender | Male |
Emission Code | 5 |
Free Flow LPH | 350 |
Fuel Filter Included | Yes |
Fuel Sending Unit Included | Yes |
Fuel Sending Unit Ohms | 73-10 Ohms |
Fuel Tank Pressure Sensor Included | No |
Fuel Type | Gasoline |
Gasket Or Seal Included | Yes |
Grade Type | Performance |
In Tank or External | In Tank |
Inlet Diameter (in) | 5/16 IN |
5/16" | |
Lock Ring Included | Yes |
Material | Steel and Plastic |
Maximum Pressure | 58 PS |
Negative Ground | Yes |
Outlet Outside Diameter | 3/8 IN |
Outlet Quantity | One |
Product Type | Fuel Pump Module |
Pump Type | Electric |
Regulator Included | Yes |
Resistance Ohms Empty | 73 82 |
Resistance Ohms Full | 10 82 |
Sale Category | Air and Fuel Delivery |
Universal Or Specific Fit | Specific |
Vent Size | N/A |
Warranty | Limited 90 Day |
Wire Harness Included | Yes |
UPC | 090127123065 |
Part Number | 12-375 |
SKU | 12-375 |
Barcode # | 90127123065 |
Brand | Holley Sniper |
Shipping Weight | 1.0800kg |
Shipping Width | 0.220m |
Shipping Height | 0.220m |
Shipping Length | 0.340m |
