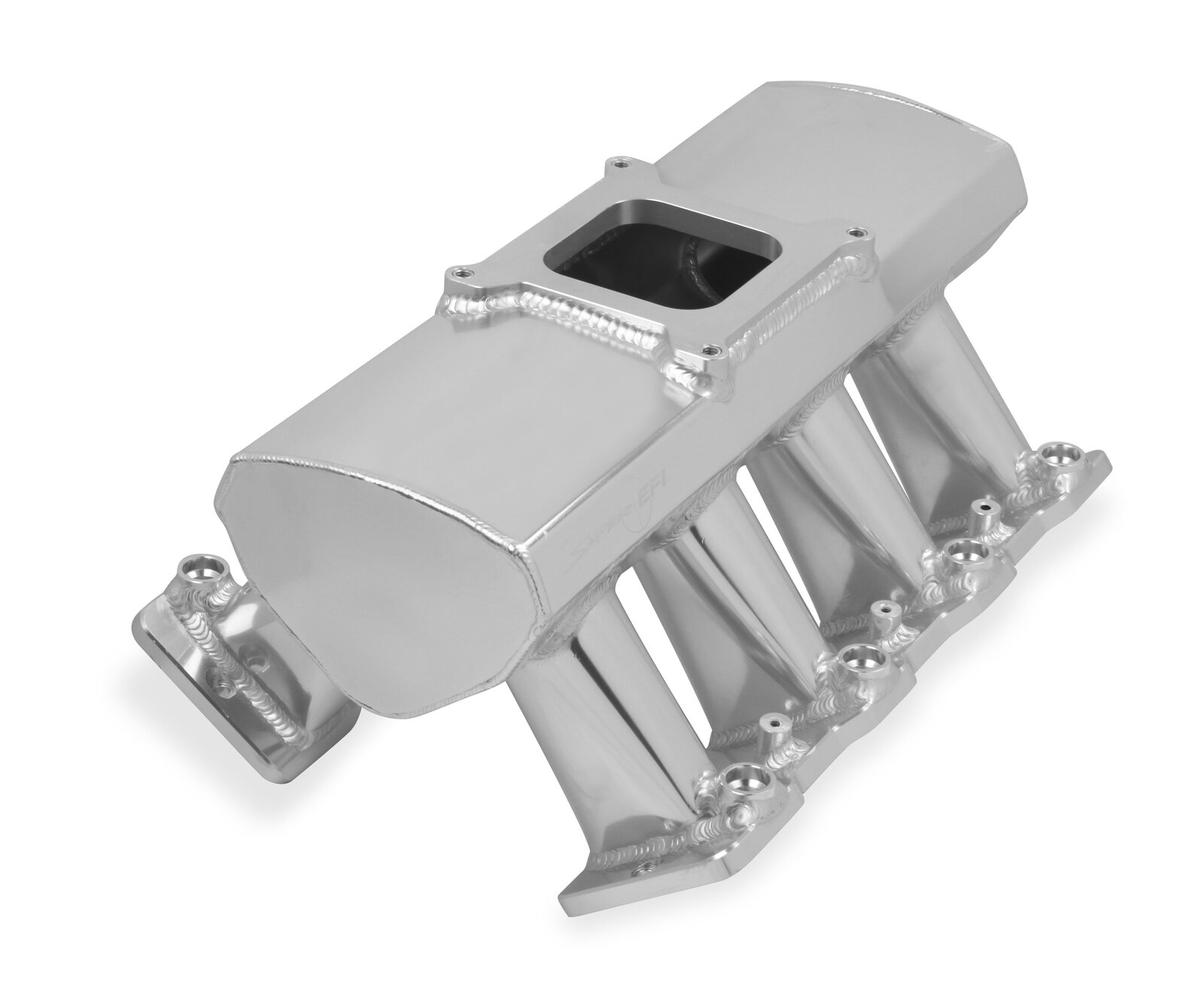

Holley Sniper EFI Sheet Metal Fabricated Intake Manifold GM LS1/2/6
SKU code: 820051
$1,516.77
Hi-Ram Sheet Metal Fabricated Intake Manifold LS1/LS2/LS6 Single Plane EFI + Fuel Rail Kit Silver with Sniper EFI logo
Holley is now offering budget friendly fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions!
Features:
- Silver finish creates high impact under-hood styling
- 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability
- Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
- 100% TIG welded for strength and durability
- Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
- Product includes all gaskets and hardware for a hassle-free installation
- 1 x 4150 flange option for increased air flow
- The Sniper intake will only accept EV1 style injectors.
Specs:
| Basic Operating RPM Range | 2500-7000 RPM |
|---|---|
| Brand | Holley Sniper EFI |
| Carburetor Flange | Square/4150 |
| Category Filter | Intake Manifolds |
| Clearance Category | Air and Fuel Delivery |
| Color | Silver |
| Construction | Fabricated |
| Discount Percentage | 26-50% |
| EGR Port | No |
| Emission Code | 4 |
| Engine | GM LS1/LS2/LS6 |
| Finish | Silver |
| Flange Size | 4150 |
| Front Height | 8.858 inch |
| Front Maximum Height | 8.858 IN |
| Fuel Injectors Included | No |
| Fuel Rail(s) Included | No |
| Fuel System Type | EFI |
| Injector Style Provision | EV1 |
| Manifold Type | Fabricated |
| Material | Aluminum |
| Nitrous Bung(s) Included | No |
| Plenum Finish | Polished |
| Product Type | Intake Manifold |
| Rear Height | 8.858 inch |
| Rear Maximum Height | 8.858 IN |
| Recommended Use | Forced Induction |
| Removable Runners | No |
| Removable Top/Lid | No |
| RPM Power Band | 2500-7000 RPM |
| Runner Length | 4.921" (125mm) |
| Sale Category | Air and Fuel Delivery |
| Single Or Dual Plane Type | Single Plane |
| Style | EFI |
| Throttle Body Included | No |
| Throttle Bore | 4150 flange |
| Vacuum Ports | (3) 1/8"-28BSPT & (1) 1/4"-19BSPT |
| Warranty | Limited 90 Day |
| UPC | 847875006399 |
| Part Number | 820051 |
| SKU | 820051 |
| Barcode # | 848000000000 |
| Brand | Holley Sniper |
| Shipping Weight | 7.5900kg |
| Shipping Width | 0.330m |
| Shipping Height | 0.390m |
| Shipping Length | 0.540m |
