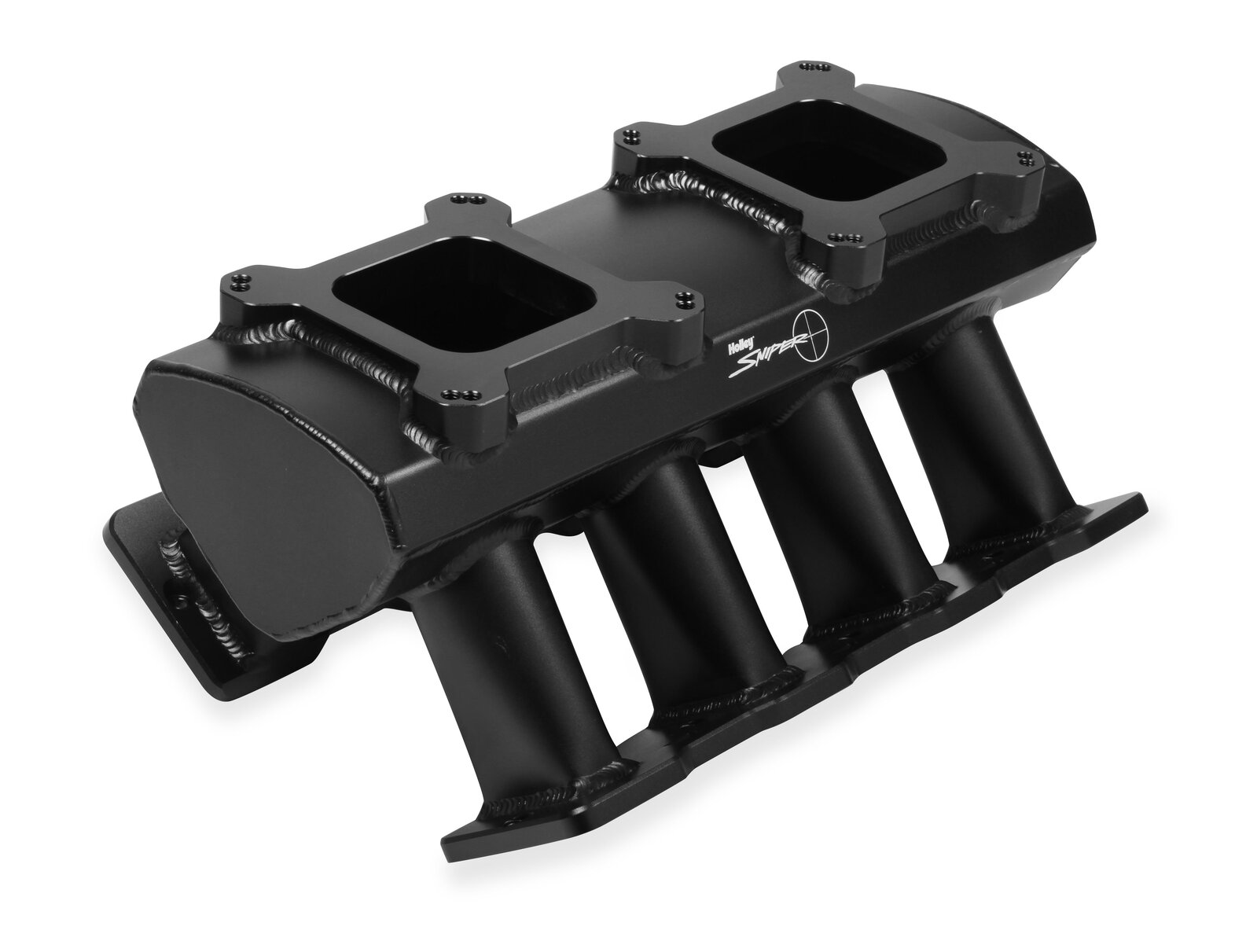

Hi-Ram Sheet Metal Fabricated Intake Manifold LS1/LS2/LS6 Single Plane Dual Quad Carbureted Black with Sniper logo

Holley is now offering budget friendly fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions!

Features:

  • 3mm (1/8") thick T6061 Sheet Aluminum construction, more durable than competitive intakes
  • Available in 92mm and 102mm bore Throttle Body Openings
  • 100% TIG welded
  • Available for EFI and Carbureted applications with custom Holley Sniper logo
  • EFI Intakes include 3/8" Fuel rail kits (Sniper logo laser engraved)
  • Runner lengths with tapered top on EFI intakes designed to increase velocity and more evenly distribute airflow to all 8 cylinders

Specs:

Basic Operating RPM Range 2500-7000 RPM
Brand Holley Sniper
Carburetor Flange Square/4150
Color Black
Construction Fabricated
EGR Port No
Emission Code 4
Engine GM LS1/LS2/LS6
Finish Black
Flange Size 4150
Front Height 9.015 inch IN
Front Maximum Height 9.015 IN
Fuel Injectors Included No
Fuel Rail(s) Included No
Fuel System Type Carb
Material Aluminum
Nitrous Bung(s) Included No
Plenum Finish Black
Product Type Intake Manifold
Rear Height 9.015 inch IN
Rear Maximum Height 9.015 IN
Removable Runners No
Removable Top/Lid No
RPM Power Band 2500-7000 RPM RPM
Runner Length 4.921" (125mm)
Single Or Dual Plane Type Single Plane
Style Carbureted
Throttle Body Included No
Vacuum Ports (3) 1/8"-28BSPT & (1) 1/4"-19BSPT
Warranty Limited 90 Day
UPC 847875006467
Part Number 821062
SKU 821062
Barcode # 848000000000
Brand Holley Sniper
Shipping Weight 5.7100kg
Shipping Width 0.270m
Shipping Height 0.390m
Shipping Length 0.530m
