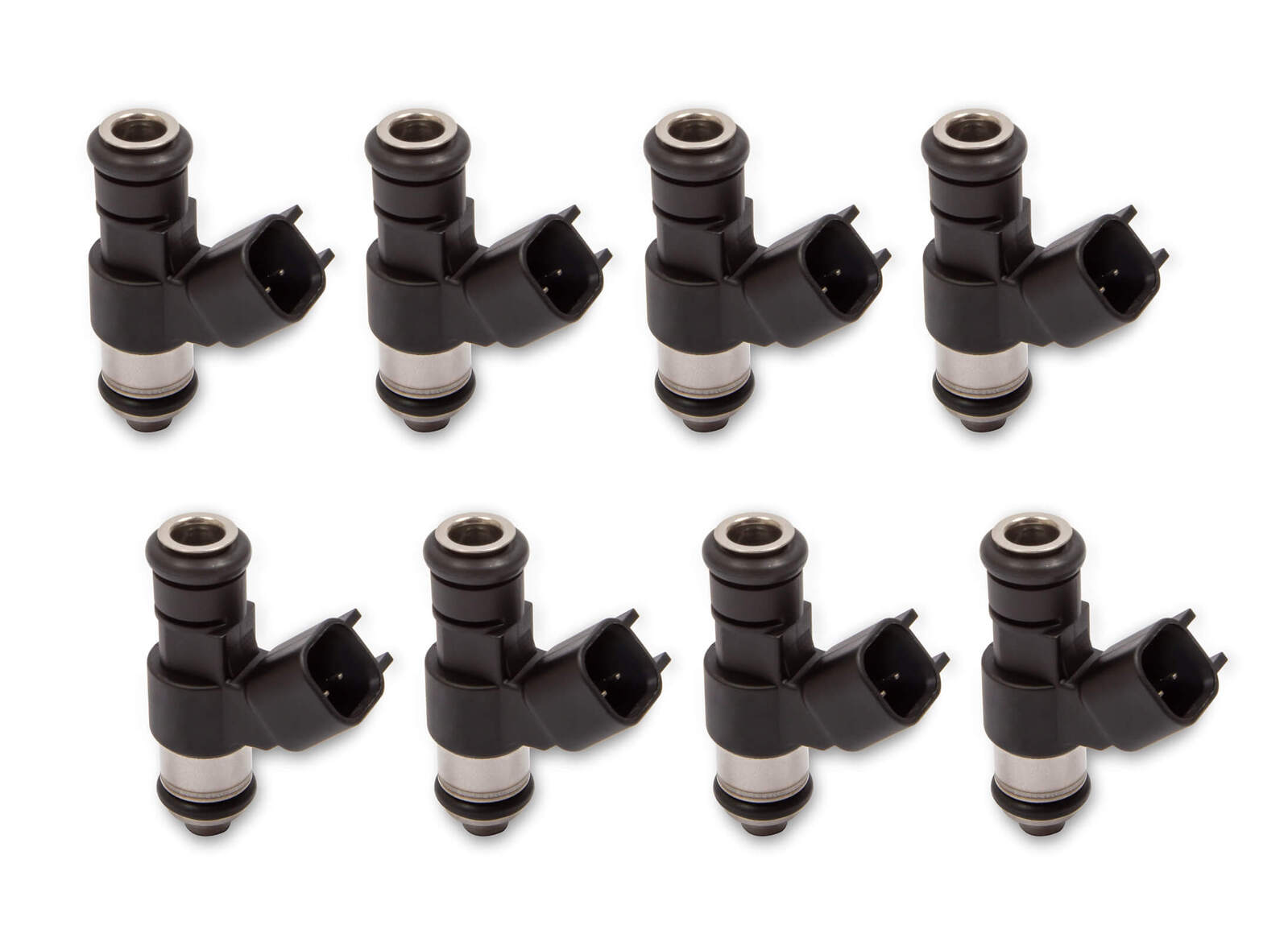

PICO/EV6 Style - High Impedance - Flow Matched

Terminator X Flow Matched High Impedance Fuel Injectors are dynamic flow matched within 1%, resulting in extremely precision and consistent injector characteristics. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. With a wide variety of fuel flow offerings from 42 lb./hr. to 220 lb./hr. (441 cc/m to 2310 cc/m) you are sure to find an injector that matches your non-emissions controlled application. These high quality fuel injectors can also be used with any ECU that utilize high impedance fuel injector drivers.

Features:

  • PICO/EV6 style performance injectors - Set of 8
  • Dynamic Flow Matched within 1%
  • High impedance for use with saturated drivers
  • 220lb/hr injectors rated at 43psi base pressure
  • Rated injector flow from 42lb/hr to 120lb/hr for a wide array of applications, at 60psi base pressure, 220lb/hr injectors rated at 43psi base pressure
  • 40mm o-ring to o-ring length
  • Compatible with many OEM LS Intake Manifolds: LSA, LS3, LS7, L76, L92, L98, L99, LS9
  • Injector Off Time provided in the Holley EFI software

Specs:

Body Diameter 0.65
Body Length 1.85"
Body Style EV6
Brand Holley EFI
Connector Series USCAR - EV6
Emission Code 4
Fuel Type E-85, Gasoline, Methanol
Impedance High (12.2 Ohm)
O-Ring to O-Ring 1.421
Product Type Fuel Injector
Rated Injector Flow 220 lb/hr
Sale Category Air and Fuel Delivery
UPC 090127137581
Part Number 522-228XFM
SKU 522-228XFM
Barcode # 90127137581
Brand Holley Sniper
Shipping Weight 0.3300kg
Shipping Width 0.060m
Shipping Height 0.140m
Shipping Length 0.220m
