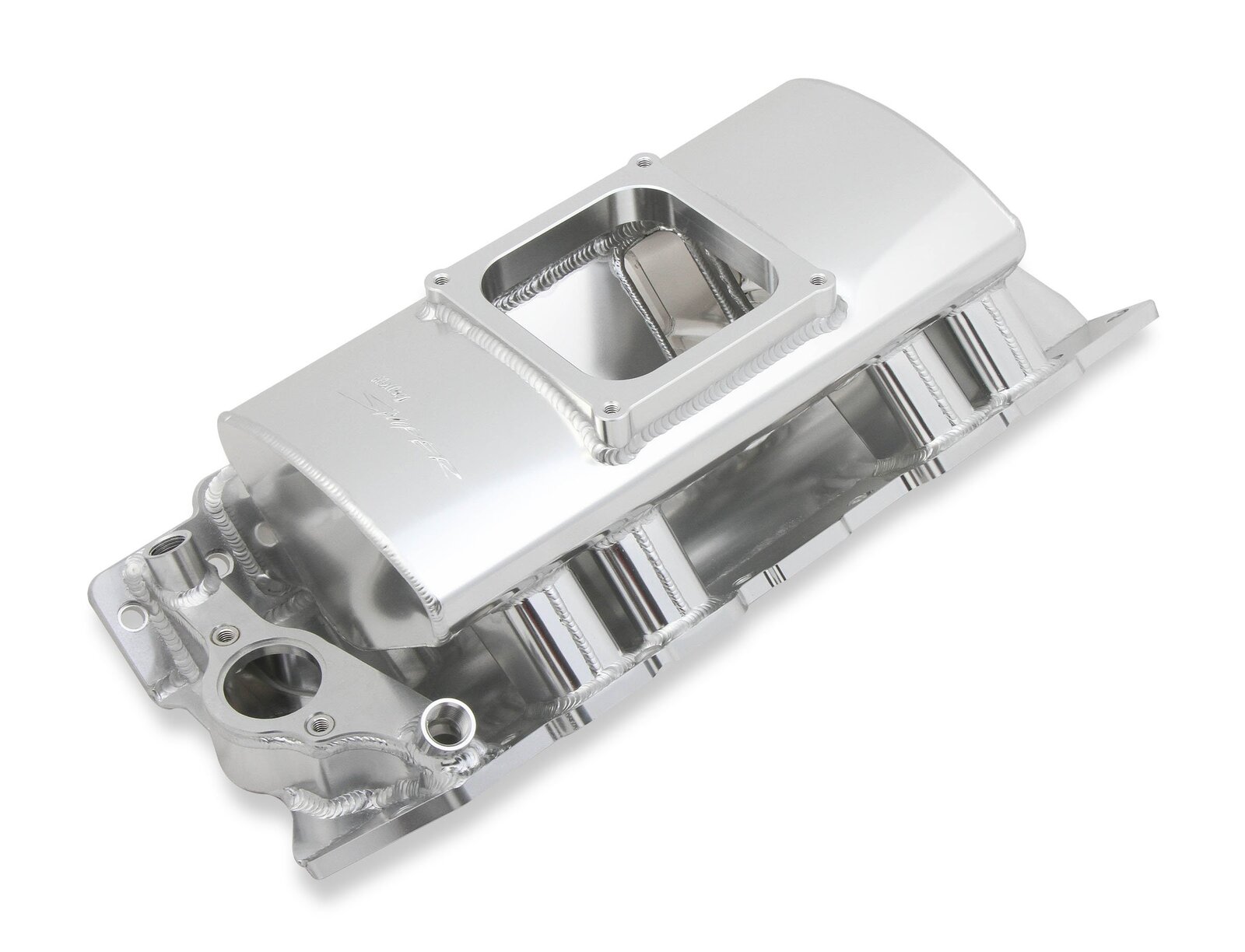

Fabricated Intake Manifold BBC Single Plane 1 x 4500 Silver with Sniper Logo

Holley Sniper Fabricated Manifolds continue to push the aftermarket by introducing intakes for Big Block Chevy Engines. These Intakes are good looking, perform well, and offer an extremely good value for a performance sheet metal style intake manifold. Each manifold is precision fixtured and welded for a perfect fit and maximum structural integrity. They are ready to bolt on out of the box and offered in a single or dual 4150 or 4500 carb flange.

Features:

  • 3mm (1/8") thick T6061 Sheet Aluminum construction, strong and durable for high horsepower and boosted conditions
  • Expanded Designs to accommodate (1 or 2 x 4150) & (1 or 2 x 4500) carbureted applications.
  • Fits standard deck height blocks
  • 100% TIG welded (laser engraved Sniper logo)
  • Equal runner lengths designed to increase velocity and more evenly distribute airflow to all 8 cylinders
  • Choice of bright silver or black anodized finish

Specs:

Basic Operating RPM Range 1800-7000 RPM
Brand Holley Sniper
Carburetor Flange Dominator/4500
Clearance Category Air and Fuel Delivery
Color Polished
Construction Fabricated
Discount Percentage 26-50%
EGR Port No
Emission Code 4
Engine GM Big Block
Finish Silver
Flange Size 4500
Front Height 6.5 inch IN
Front Maximum Height 6.5 IN
Fuel Injectors Included No
Fuel Rail(s) Included No
Material Aluminum
Nitrous Bung(s) Included No
Plenum Finish Polished
Port Shape Rectangular
Port Size 1.55" x 2.21"
Product Type Intake Manifold
Rear Height 6.5 inch IN
Rear Maximum Height 6.5 IN
Removable Runners No
Removable Top/Lid No
RPM Power Band 1800-7000 RPM RPM
Sale Category Air and Fuel Delivery
Single Or Dual Plane Type Single Plane
Style Carbureted
Throttle Body Included No
Warranty Limited 90 Day
UPC 090127001394
Part Number 835161
SKU 835161
Barcode # 90127001394
Brand Holley Sniper
Shipping Weight 6.3600kg
Shipping Width 0.230m
Shipping Height 0.320m
Shipping Length 0.620m
