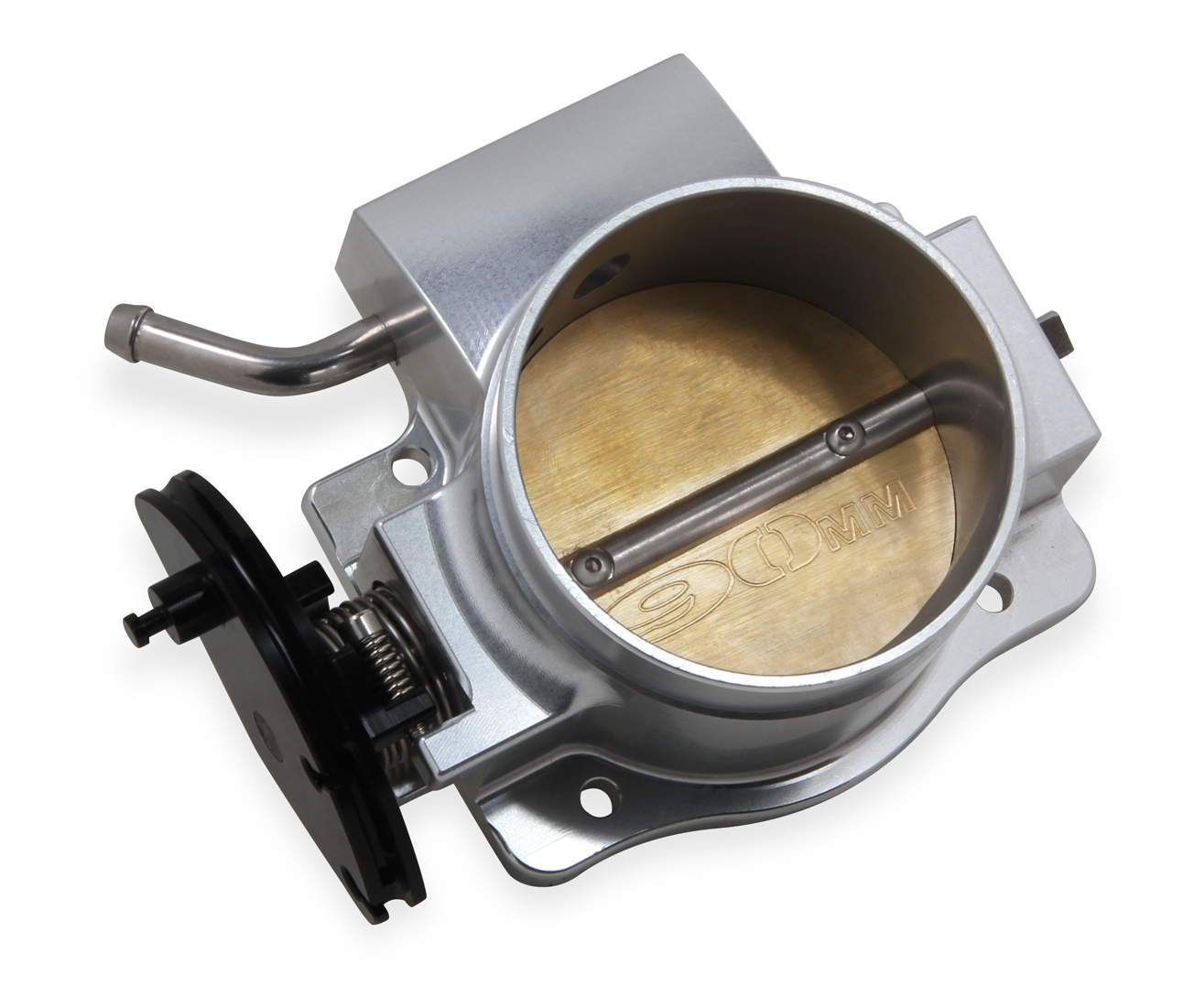

90MM Throttle Body LS Engine, Silver with GM IAC provision

Sniper EFI's new 90mm billet aluminum throttle bodies are designed as a direct fit for the Fabricated Race intake manifolds. Don't let the low price fool you, these are feature packed throttle bodies available in both bright silver or black anodized finishes. The enlarged bore sizes allow for increased airflow to support your higher horsepower needs, a progressive throttle pulley enhances low speed drivability and a double return spring provides solid and secure throttle control feel.

Features:

  • Cable operated throttle body available in 90mm opening
  • Enlarged bore allows increased airflow to support higher horsepower requirements
  • Built specifically for Sniper EFI Race intake manifolds
  • High quality billet aluminum construction
  • Choice of bright silver or black anodized finish
  • Laser engraved Sniper EFI logo
  • Progressive throttle pulley and double return spring
  • Adjustable throttle stop
  • 4-bolt style mounting pattern, bolts included

Specs:

Billet Color Silver
Brand Sniper
Clearance Category Air and Fuel Delivery
Discount Percentage 26-50%
Emission Code 8
IAC hardware specs (2) 8-32 UNC
Material Billet Aluminum
Product Type Throttle Body
Sale Category Air and Fuel Delivery
Throttle Bore 90mm
Throttle Diameter (mm) 90mm
TPS hardware specs (2) M4 x 0.7
Transmission N/A
Warranty Limited 90 Day
UPC 090127022689
Part Number 860007-1
SKU 860007-1
Barcode # 90127022689
Brand Holley Sniper
Shipping Weight 1.2900kg
Shipping Width 0.130m
Shipping Height 0.180m
Shipping Length 0.220m
