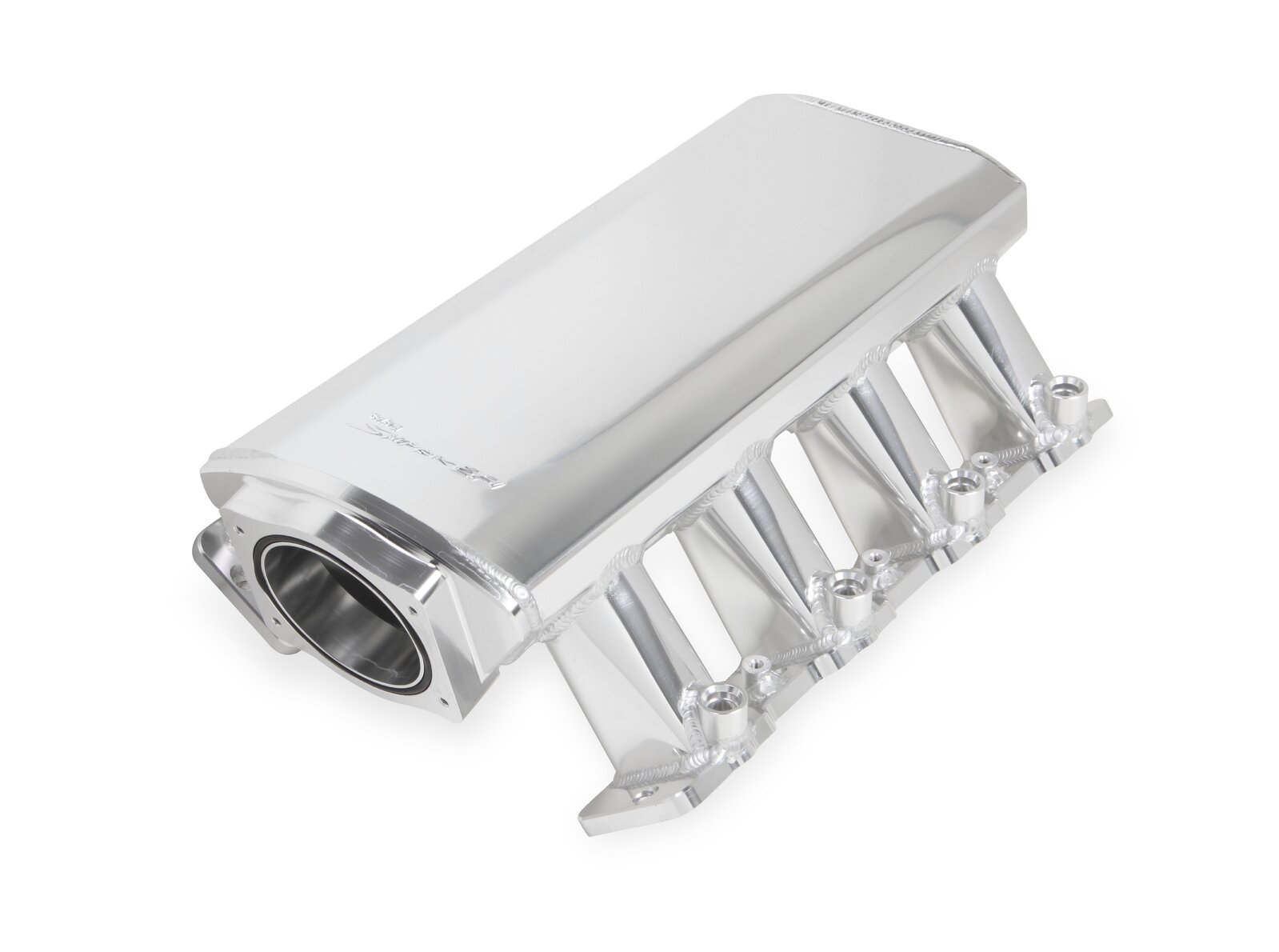

Hi-Ram Sheet Metal Fabricated Intake Manifold LS1/LS2/LS6 92mm Throttle Body opening + Fuel Rail Kit Silver with Sniper EFI logo- Now Includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525 or equivalent

Holley is now offering budget friendly fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions!

Features:

  • Silver finish creates high impact under-hood styling
  • 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability
  • 92mm throttle bore opening for increased air flow
  • 100% TIG welded for strength and durability
  • Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
  • Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
  • Product includes all gaskets and hardware for a hassle-free installation
  • The Sniper intake will only accept EV1 style injectors.

Specs:

Brand Sniper
Category Filter Intake Manifolds
Clearance Category Intake Manifolds
Color Black
Construction Fabricated
Emission Code 4
Engine GM LS1/LS2/LS6
Finish Black
Front Height 8.267 inch
Fuel System Type EFI
Injector Style Provision LS1/LS6 EV1 Jetronic, LS2 EV6 USCAR
Manifold Type Fabricated
Product Type Intake Manifold
Rear Height 7.559 inch
Recommended Use Forced Induction
RPM Power Band 2500-7000 RPM
Runner Length 4.921" (125mm)
Style EFI
Throttle Bore 92mm
Vacuum Ports (3) 1/8"-28BSPT & (1) 1/4"-19BSPT
Warranty Limited 90 Day
UPC 090127044926
Part Number 820031-1
SKU 820031-1
Barcode # 90127044926
Brand Holley Sniper
Shipping Weight 6.9600kg
Shipping Width 0.290m
Shipping Height 0.380m
Shipping Length 0.520m
