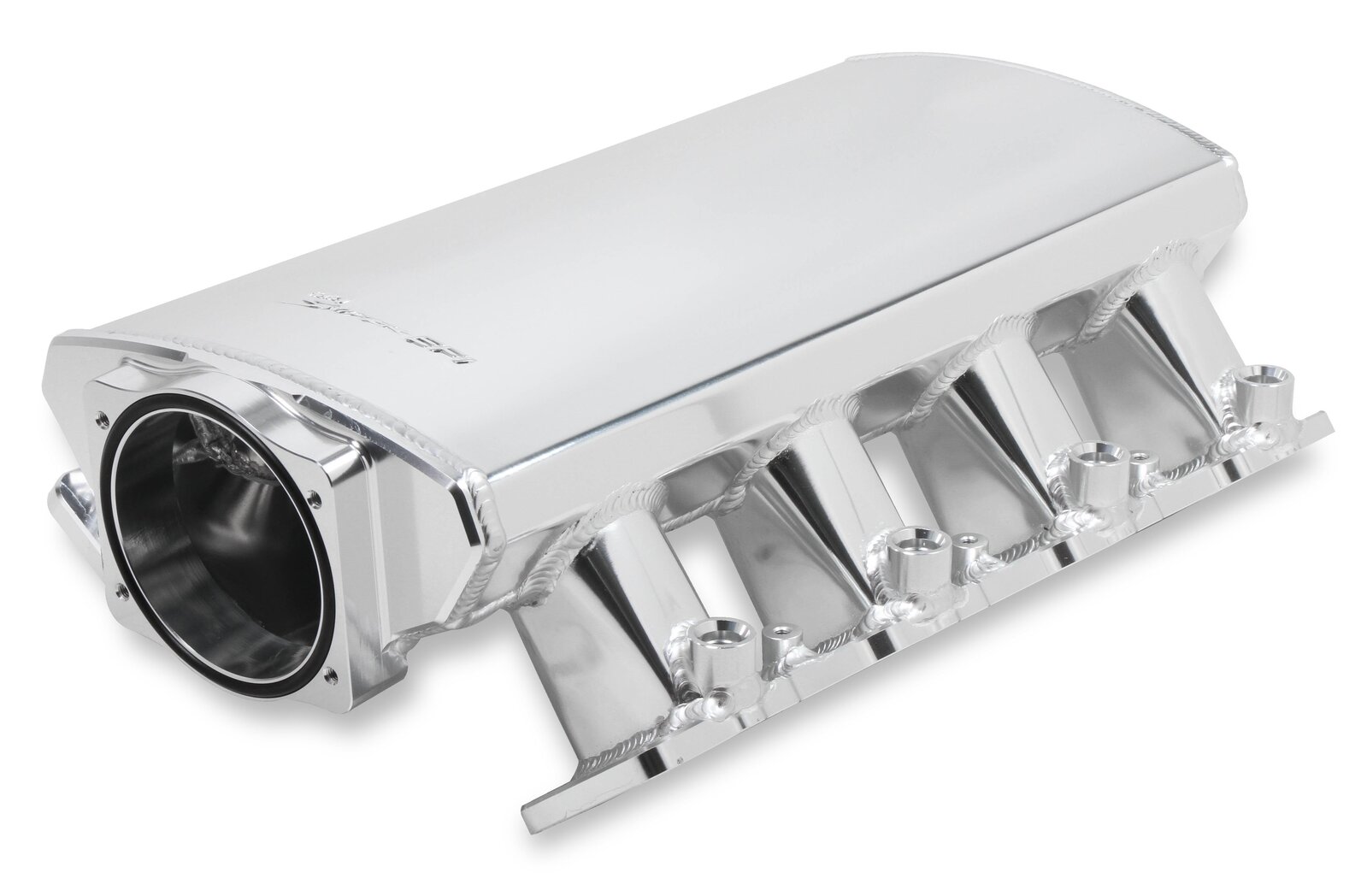

Holley Sniper EFI Low-Profile Sheet Metal Fabricated Intake Manifold GM LS7
SKU code: 830111-1
Hi-Ram Sheet Metal Fabricated Intake Manifold LS7 102mm Throttle Body opening + Fuel Rail Kit Silver with Sniper logo -Low Profile
Holley Sniper Fabricated Manifolds continues to push the aftermarket by introducing Low Profile intakes for GM LS Engines. These Intakes are a good looking, perform well, and offer an extremely good value for a performance sheet metal style intake manifold for the very popular GM LS engine family. Each manifold is ready to bolt on out of the box and are designed to accept our Sniper high-flow throttle bodies and include high flow fuel rail kit. This updated design was developed to allow the end user to fit under a stock hood. Each manifold is precision fixtured and welded for a perfect fit and maximum structural integrity. Choice of Throttle Body opening sizes of 92mm & 102mm are available
Features:
- Silver finish creates high impact under-hood styling
- 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability
- 102mm throttle bore opening for increased air flow
- 100% TIG welded for strength and durability
- Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
- Low Profile, Compact Design (overall 1.875 inches shorter) allows fitment under stock hoods on Corvette, Camaro, Firebird, GTO, and others where hood clearance is at a minimum
- Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
- Product includes all gaskets and hardware for a hassle-free installation
- The Sniper intake will only accept EV1 style injectors.
Specs:
| Basic Operating RPM Range | 1500-6500 RPM |
|---|---|
| Brand | Holley Sniper EFI |
| Category Filter | Intake Manifolds |
| Clearance Category | Air and Fuel Delivery |
| Color | Silver |
| Construction | Fabricated |
| Discount Percentage | 26-50% |
| EGR Port | No |
| Emission Code | 4 |
| Engine | GM LS7 |
| Finish | Silver |
| Front Height | 5.487 inch |
| Front Maximum Height | 5.487 IN |
| Fuel Injectors Included | No |
| Fuel System Type | EFI |
| Injector Style Provision | EV1 |
| Material | Aluminum |
| Nitrous Bung(s) Included | No |
| Plenum Finish | Polished |
| Product Type | Intake Manifold |
| Rear Height | 4.975 inch |
| Rear Maximum Height | 4.975 IN |
| Recommended Use | Forced Induction |
| Removable Runners | No |
| Removable Top/Lid | No |
| RPM Power Band | 1500-6500 RPM |
| Runner Length | 4.331" (110mm) |
| Sale Category | Air and Fuel Delivery |
| Single Or Dual Plane Type | Single Plane |
| Style | EFI |
| Throttle Body Bore Diameter | 102 MM |
| Throttle Body Included | No |
| Throttle Bore | 102mm |
| Vacuum Ports | (3) 1/8"-28BSPT & (1) 1/4"-19BSPT |
| Warranty | Limited 90 Day |
| UPC | 090127045398 |
| Part Number | 830111-1 |
| SKU | 830111-1 |
| Barcode # | 90127045398 |
| Brand | Holley Sniper |
| Shipping Weight | 6.9300kg |
| Shipping Width | 0.260m |
| Shipping Height | 0.390m |
| Shipping Length | 0.530m |
