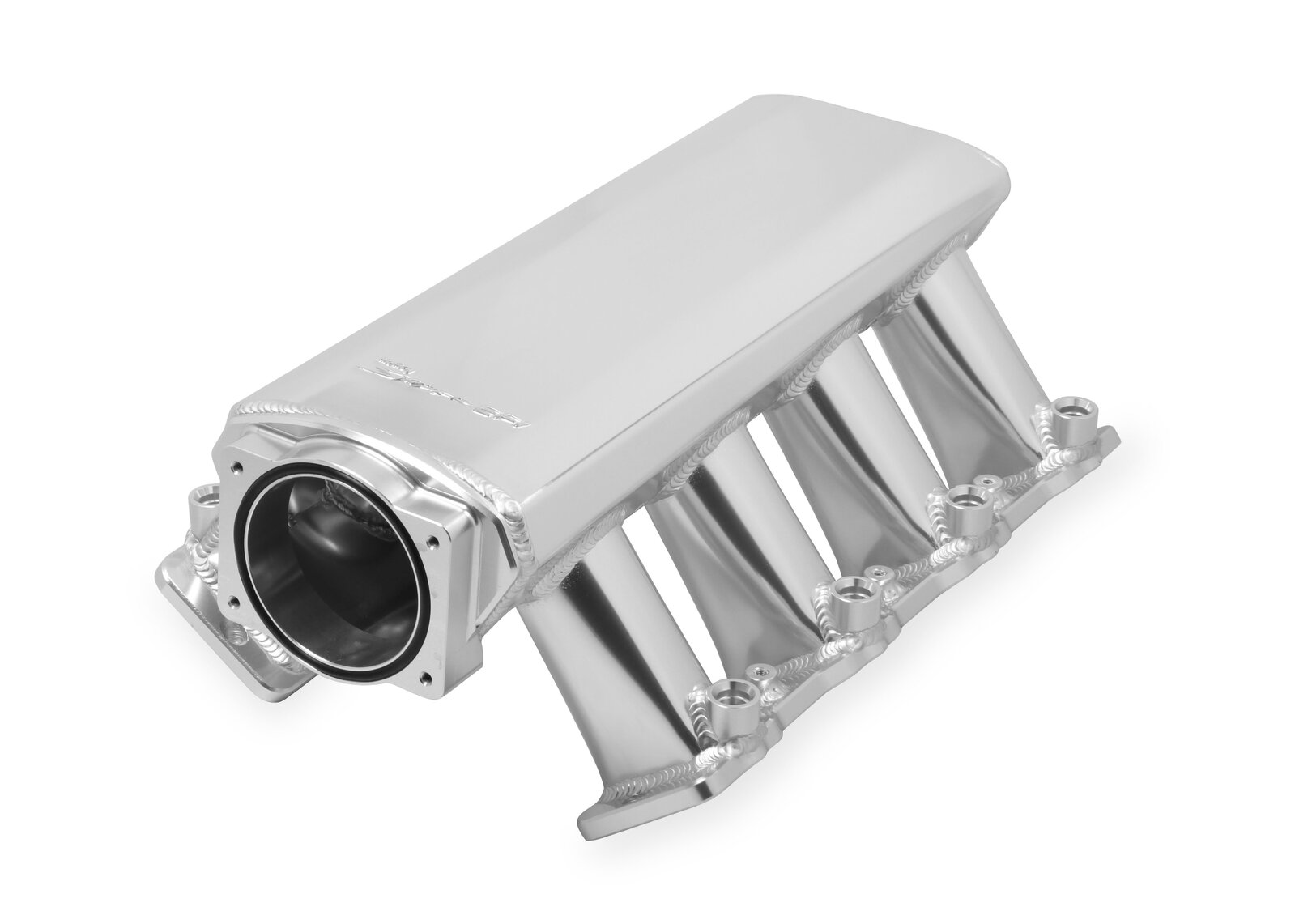

Hi-Ram Sheet Metal Fabricated Intake Manifold LS3/L92 92mm Throttle Body opening + Fuel Rail Kit Silver with Sniper EFI logo - Now includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525 or equivalent.

Holley is now offering budget friendly fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions!

Features:

  • 3mm (1/8") thick T6061 Sheet Aluminum construction, more durable than competitive intakes
  • Available in 92mm and 102mm bore Throttle Body Openings
  • 100% TIG welded
  • Available for EFI and Carbureted applications with custom Holley Sniper logo
  • EFI Intakes include 3/8" Fuel rail kits (Sniper logo laser engraved)
  • Runner lengths with tapered top on EFI intakes designed to increase velocity and more evenly distribute airflow to all 8 cylinders
  • Provision for MAP sensor located on rear of plenum
  • The Sniper intake will only accept EV1 style injectors.

Specs:

Brand Sniper
Category Filter Intake Manifolds
Clearance Category Intake Manifolds
Color Silver
Construction Fabricated
Emission Code 4
Engine GM LS3/L92
Finish Silver
Front Height 7.952 inch
Fuel System Type EFI
Injector Style Provision EV1
Manifold Type Fabricated
Product Type Intake Manifold
Rear Height 7.165 inch
Recommended Use Forced Induction
RPM Power Band 2500-7000 RPM
Runner Length 5.512" (140mm)
Sale Category Air and Fuel Delivery
Style EFI
Throttle Bore 92mm
Vacuum Ports (3) 1/8"-28BSPT & (1) 1/4"-19BSPT
UPC 090127045046
Part Number 822031-1
SKU 822031-1
Barcode # 90127045046
Brand Holley Sniper
Shipping Weight 6.7300kg
Shipping Width 0.300m
Shipping Height 0.390m
Shipping Length 0.530m
