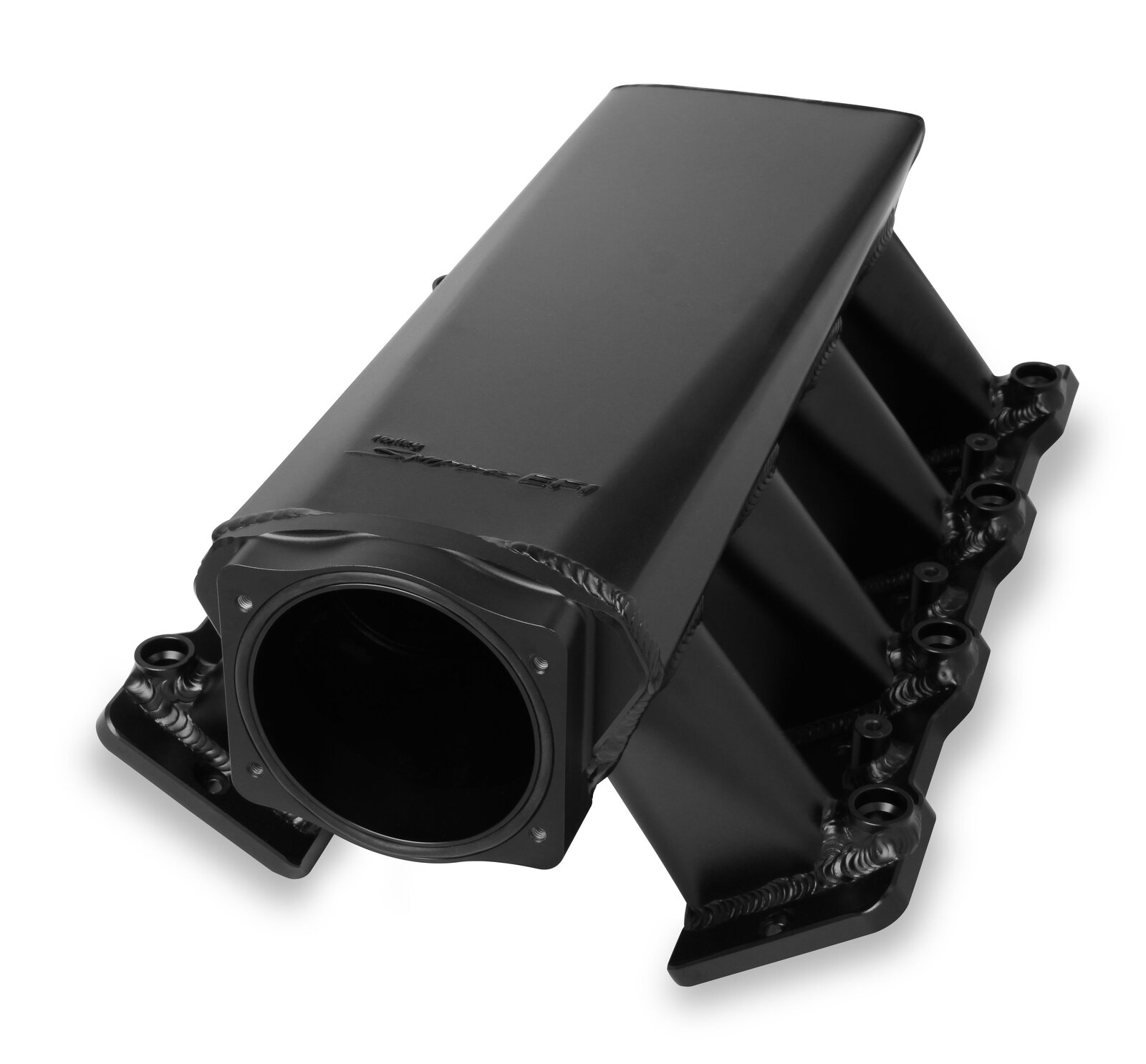

Hi-Ram Sheet Metal Fabricated Intake Manifold LS1/LS2/LS6 92mm Throttle Body opening + Fuel Rail Kit Black with Sniper EFI Logo- Now Includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525 or equivalent

Holley is now offering budget friendly fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions!

Features:

  • Black Finish creates stealthy under-hood styling
  • 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability
  • 92mm throttle bore opening for increased air flow
  • 100% TIG welded for strength and durability
  • Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
  • Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
  • Provision for MAP sensor located on rear of plenum
  • Product includes all gaskets and hardware for a hassle-free installation
  • The Sniper intake will only accept EV1 style injectors.

Specs:

Brand Sniper
Category Filter Intake Manifolds
Clearance Category Intake Manifolds
Color Black
Construction Fabricated
Emission Code 4
Engine GM LS1/LS2/LS6
Finish Black
Front Height 8.267 inch
Fuel System Type EFI
Injector Style Provision LS1/LS6 EV1 Jetronic, LS2 EV6 USCAR
Manifold Type Fabricated
Product Type Intake Manifold
Rear Height 7.559 inch
Recommended Use Forced Induction
RPM Power Band 2500-7000 RPM
Runner Length 4.921" (125mm)
Sale Category Air and Fuel Delivery
Style EFI
Throttle Bore 92mm
Vacuum Ports (3) 1/8"-28BSPT & (1) 1/4"-19BSPT
Warranty Limited 90 Day
UPC 090127044933
Part Number 820032-1
SKU 820032-1
Barcode # 90127044933
Brand Holley Sniper
Shipping Weight 6.8200kg
Shipping Width 0.300m
Shipping Height 0.390m
Shipping Length 0.540m
