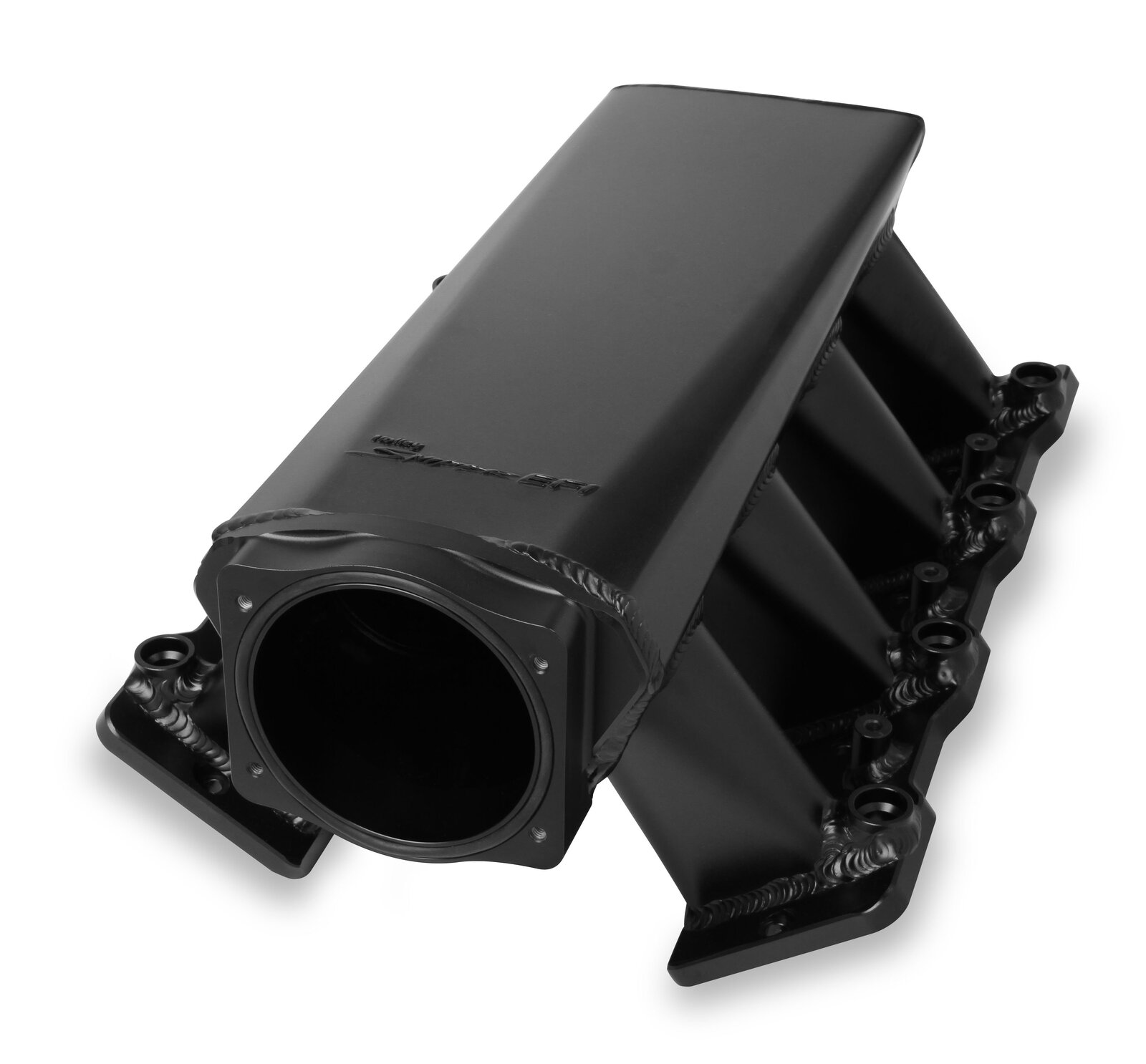

Hi-Ram Sheet Metal Fabricated Intake Manifold LS1/LS2/LS6 102mm Throttle Body opening + Fuel Rail Kit Black with Sniper logo

Holley is now offering budget friendly fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions! Now Includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525 or equivalent

Features:

  • Black Finish creates stealthy under-hood styling
  • 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability
  • 102mm throttle bore opening for increased air flow
  • 100% TIG welded for strength and durability
  • Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
  • Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
  • Product includes all gaskets and hardware for a hassle-free installation
  • The Sniper intake will only accept EV1 style injectors.

Specs:

Basic Operating RPM Range 2200-6800 RPM
Brand Holley Sniper EFI
Category Filter Intake Manifolds
Clearance Category Intake Manifolds
Color Black
Construction Fabricated
EGR Port No
Emission Code 4
Engine GM Gen III/IV (LS)
Finish Black
Front Height 8.267 inch
Front Maximum Height 8.267 IN
Fuel Injectors Included No
Fuel System Type EFI
Injector Style Provision EV1
Manifold Type Fabricated
Material Aluminum
Nitrous Bung(s) Included No
Plenum Finish Black
Product Type Intake Manifold
Rear Height 7.559 inch
Rear Maximum Height 7.559 IN
Removable Runners No
Removable Top/Lid No
RPM Power Band 2200-6800 RPM
Runner Length 4.921" (125mm)
Single Or Dual Plane Type Single Plane
Throttle Body Bore Diameter 102 MM
Throttle Body Included No
Throttle Bore 102mm
Vacuum Ports (3) 1/8"-28BSPT & (1) 1/4"-19BSPT
Warranty Limited 90 Day
UPC 090127044957
Part Number 820042-1
SKU 820042-1
Barcode # 90127044957
Brand Holley Sniper
Shipping Weight 6.7800kg
Shipping Width 0.300m
Shipping Height 0.390m
Shipping Length 0.540m
