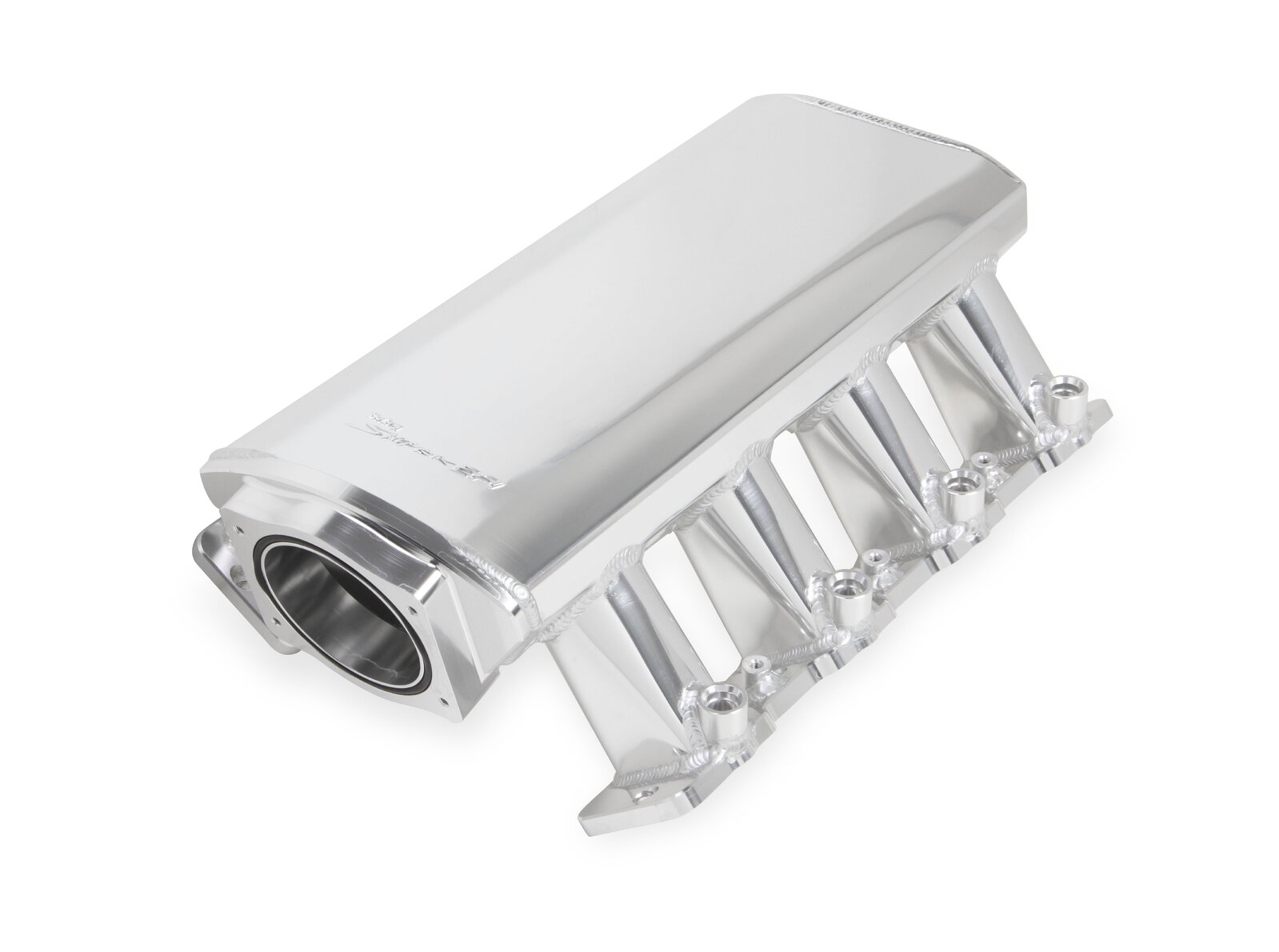

Hi-Ram Sheet Metal Fabricated Intake Manifold LS1/LS2/LS6 102mm Throttle Body opening + Fuel Rail Kit Silver with Sniper EFI logo

Holley is now offering budget friendly fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions! Now Includes mounting provision for MAP sensor on rear of intake plenum. Use GM #12592525 or equivalent

Features:

  • Silver finish creates high impact under-hood styling
  • 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability
  • 102mm throttle bore opening for increased air flow
  • 100% TIG welded for strength and durability
  • Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
  • Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
  • Product includes all gaskets and hardware for a hassle-free installation
  • The Sniper intake will only accept EV1 style injectors.

Specs:

Brand Sniper
Category Filter Intake Manifolds
Clearance Category Intake Manifolds
Color Silver
Construction Fabricated
Emission Code 4
Engine GM LS1/LS2/LS6
Finish Silver
Front Height 8.267 inch
Fuel System Type EFI
Injector Style Provision EV1
Manifold Type Fabricated
Product Type Intake Manifold
Rear Height 7.559 inch
Recommended Use Forced Induction
RPM Power Band 2500-7000 RPM
Runner Length 4.921" (125mm)
Style EFI
Throttle Bore 102mm
Vacuum Ports (3) 1/8"-28BSPT & (1) 1/4"-19BSPT
Warranty Limited 90 Day
UPC 090127044940
Part Number 820041-1
SKU 820041-1
Barcode # 90127044940
Brand Holley Sniper
Shipping Weight 6.9100kg
Shipping Width 0.310m
Shipping Height 0.390m
Shipping Length 0.530m
