1969-1970 Ford Mustang / Mercury Cougar - Coated Tank - EFI - Gasoline

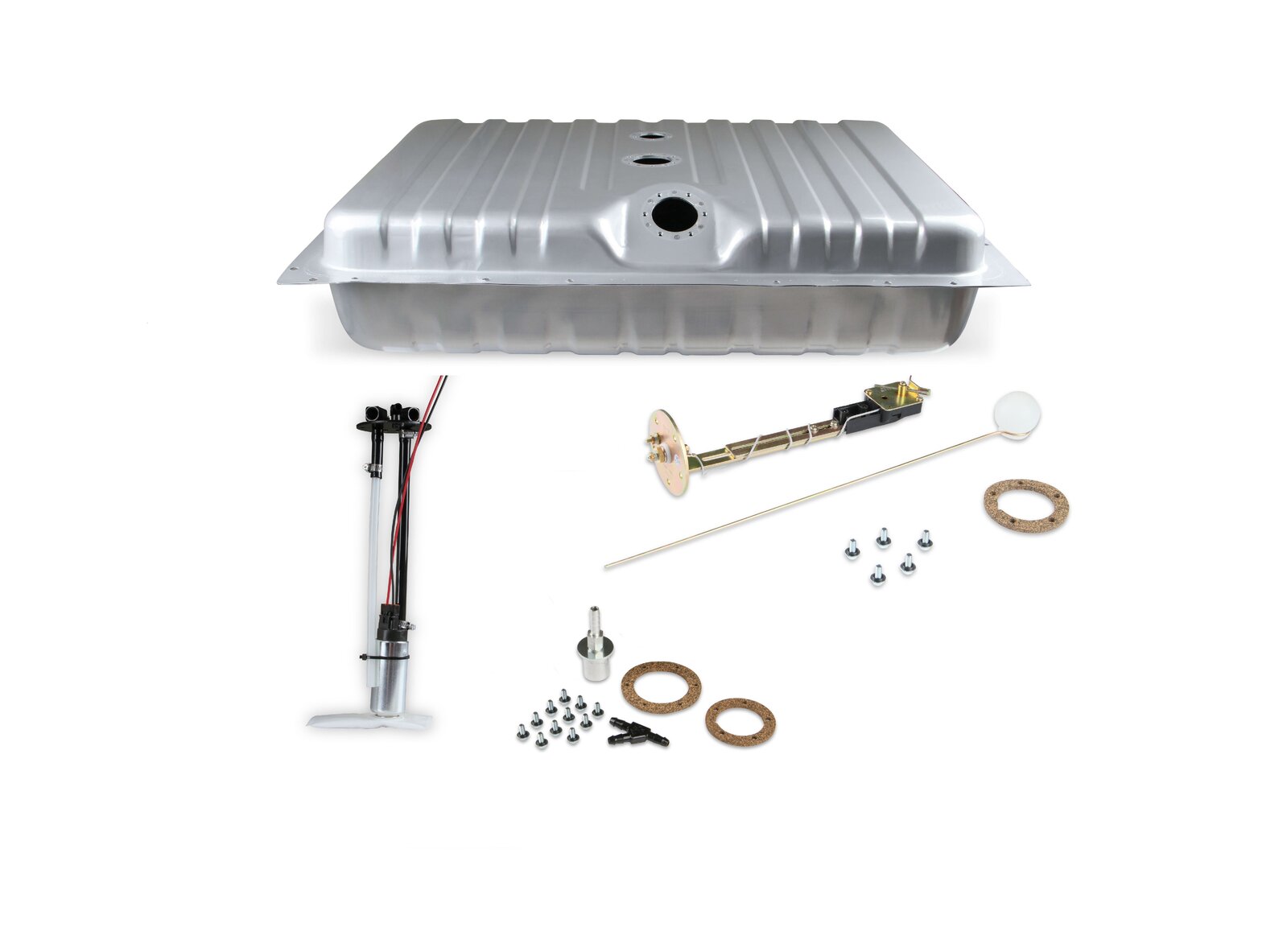

Holley and Sniper will help you to complete your EFI swap with our new EFI Conversion Fuel Tanks. Each tank is a direct fit for your application-no modifications necessary. The kit includes the tank, a 255 lph fuel pump, internal baffling, and a fuel level sender. The tank is powder coated for corrosion resistance and great looks. These tank kits are a complete solution for your EFI project! ***Steel filler neck that extends to rear valance is not included. You must use your existing stock filler neck or purchase one through restoration suppliers. ***These tanks are perfect for your next classic truck EFI conversion project as well. Supports up to 550 EFI (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw) Size is: 32-5/8" x 24-1/2" x 9-3/4" For a better seal use Permatex Indian Head Gasket Shellac Compound or Aviation Form-A-Gasket sealant on the gasket and screws.

Features:

  • Tanks are coated galvanized steel then powder coated silver for total corrosion protection
  • 255 lph fuel pump with hanger assembly gives you the fuel you need with in-tank quietness
  • Sender has ¼” NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting
  • Fuel level sender included with the correct Ohm range for your factory gauges
  • Fuel pump and sender are recessed in the tank to provide an easy installation with no modification to your car
  • EFI style tank baffling includes a large 4.3 liter internal fuel tray to prevent fuel pump starvation
  • Fits and looks like an OE tank when installed
  • Complete bolt in solution for your EFI conversion
  • Sender has ¼" NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting

Specs:

Application 1969-1970 Ford Mustang
Attached Sump Yes
Baffled Sump Yes
Brand Holley Sniper EFI
Color Silver
Drain Plug No
Emission Code 4
Finish Powdercoated
Free Flow LPH 255
Fuel Sending Unit Ohms 73-10 Ohms
Fuel System Compatibility Electronic Fuel Injection
Fuel System Type Gasoline
Fuel Tank Coating Powder Coated
Gallon Capacity 22
Grade Type Performance
Lock Ring Included Yes
Material Steel
Maximum Flow Rating 255 LPH
Mounting Straps Included Yes
New Straps Included No
O-Ring Included Yes
Product Type Fuel Tank
Resistance Ohms Empty 73 82
Resistance Ohms Full 10 82
Sale Category Air and Fuel Delivery
Tank Capacity 22 GA
Tank Color Gray
Tank Material Steel
Warranty Limited 90 Day
UPC 090127740842
Part Number 19-117
SKU 19-117
Barcode # 90127740842
Brand Holley Sniper
Shipping Weight 13.1300kg
Shipping Width 0.300m
Shipping Height 0.660m
Shipping Length 0.890m
