1969 Chevy Camaro/Firebird, Coated Steel, EFI, Gas

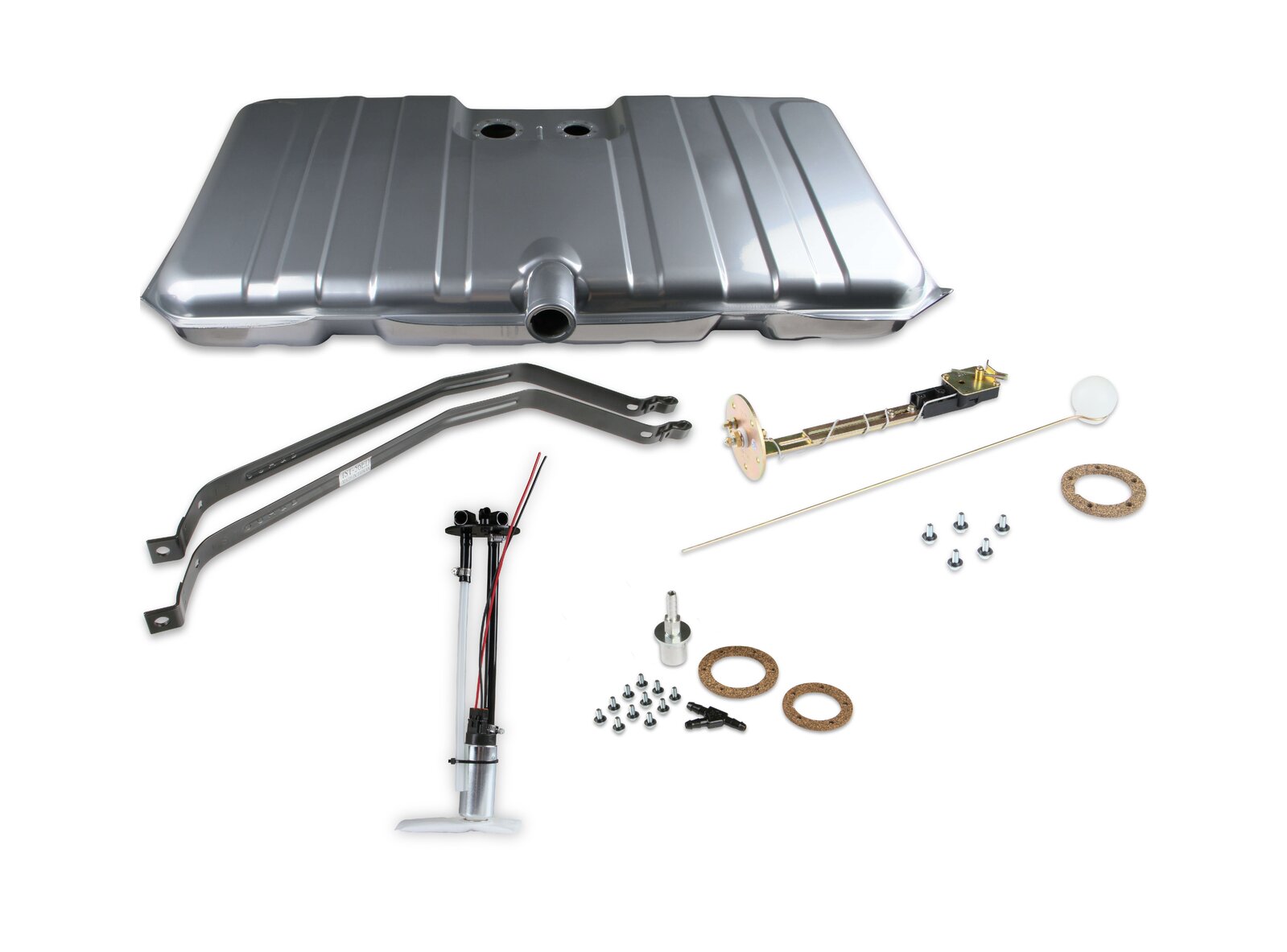

Holley and Sniper will help you to complete your EFI swap with our new EFI Conversion Fuel Tanks. Each tank is a direct fit for your application-no modifications necessary. The kit includes the tank, a 255 lph fuel pump, internal baffling, a fuel level sender, and the filler neck. The tank is powder coated for corrosion resistance and great looks. These tank kits are a complete solution for your EFI project! Supports up to 550 EFI (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw) Size is: 39-3/8" x 20-7/8" x 7-3/4" For a better seal use Permatex Indian Head Gasket Shellac Compound or Aviation Form-A-Gasket sealant on the gasket and screws.

Features:

  • Tanks are coated galvanized steel then powder coated silver for total corrosion protection
  • 255 lph fuel pump with hanger assembly gives you the fuel you need with in-tank quietness
  • Sender has ¼” NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting
  • Fuel level sender included with the correct Ohm range for your factory gauges
  • Fuel pump and sender are recessed in the tank to provide an easy installation with no modification to your car
  • EFI style tank baffling includes a large 4.3 liter internal fuel tray to prevent fuel pump starvation
  • Fits and looks like an OE tank when installed
  • Sender has ¼" NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting
  • We even have notched tanks for the First Gen F-bodies with rear suspension mods and huge tires
  • Complete bolt in solution for your EFI conversion
  • Includes new tank straps

Specs:

Application 1969 Chevrolet Camaro/Pontiac Firebird
Attached Sump Yes
Baffled Sump Yes
Brand Holley Sniper EFI
Color Silver
Drain Plug No
Emission Code 4
Finish Powdercoated
Free Flow LPH 255
Fuel Sending Unit Ohms 0-90 Ohms
Fuel System Compatibility Electronic Fuel Injection
Fuel System Type Gasoline
Fuel Tank Coating Powder Coated
Gallon Capacity 18
Grade Type Performance
Lock Ring Included Yes
Material Steel
Maximum Flow Rating 255 LPH
Mounting Straps Included Yes
New Straps Included Yes
O-Ring Included Yes
Product Type Fuel Tank
Resistance Ohms Empty 0 82
Resistance Ohms Full 90 82
Tank Capacity 18 GA
Tank Color Gray
Tank Material Steel
Warranty Limited 90 Day
UPC 090127740705
Part Number 19-104
SKU 19-104
Barcode # 90127740705
Brand Holley Sniper
Shipping Weight 13.6500kg
Shipping Width 0.260m
Shipping Height 0.670m
Shipping Length 1.070m
