Inline Pump - Without PDM - 3.5 in. Handheld

The #1 EFI conversion system just got better. Introducing Sniper 2 EFI - a self-tuning, easy-to-install, EFI conversion for common 4-barrel (4150 flange) style carburetors. We took everything that we learned from the original Sniper EFI system and added 14 new features that will make your EFI conversion more simple, reliable, and modern. Like all Sniper EFI systems, Sniper 2 is designed to work with the Sniper Ecosystem that includes Hyperspark ignition, complete fuel systems, multiple user interfaces/dash displays, and more. New for Sniper 2 is the optional Power Distribution Module (PDM). This cost-effective and optional accessory isolates the core of your EFI and ignition wiring into one, easy-to-use location. Simply slide the stripped wire ends under the positive lock connector and tighten down the set screw. Battery and a switched 12-volt source is all that's required from your vehicle to power the PDM and your Sniper EFI. Make your classic drive like a modern fuel-injected vehicle, including easy cold starts, smooth drivability, and improved fuel economy. Sniper 2 is designed to be installed at home in your garage with limited tools and the support of Holley's comprehensive installation manual and videos. The user-friendly setup wizard allows you to answer a few simple questions about your engine and the system will begin self-tuning with no laptop or tuning experience required. If you're looking for a high-performance fuel injection system that delivers power, efficiency, and ease of use, look no further than the Sniper 2 EFI.

Features:

  • All new design
  • Only four wiring connections required: Battery+, Battery-, Switched Ignition, and RPM
  • Calibration wizard only requires that you answer a few simple questions about your engine to create a base map and begin self-tuning – No laptop required
  • Supports up to 650hp naturally aspirated or 575hp on boost with four 100 lb/hr injectors
  • (NEW) Next generation ECU features improved RF noise and interference resistance (stands up to old car wiring, noisy alternators, faulty plug wires)
  • (NEW) Redesigned throttle shaft and plate geometry for a smoother throttle feel
  • Sniper 2 is compatible with the complete Sniper EFI Ecosystem that includes plug-n-play Hyperspark Ignition systems (coil, ignition box and distributor), fuel systems (fuel lines, fuel pump hangers), multiple displays and more
  • Additional Features
  • (NEW) Main harness includes plug-and-play HyperSpark distributor support, for integrated timing control, making your ignition setup hassle free
  • (NEW) Adaptors for other ignition types sold separately: 558-329 CD Box to Sniper 2, 558-330 MSD Pro Billet / Crank Trigger to Sniper 2
  • (NEW) Wide Variety of tuning and gauge display interfaces from a 3.5-inch full color LCD Handheld, 5-inch Digital Dash, or the Bluetooth dongle, which allows you to connect either an iOS or Android based cell phone to your Sniper 2
  • (NEW) Optional Power Distribution Module (PDM) further simplifies wiring, especially when used in conjunction with an ignition system

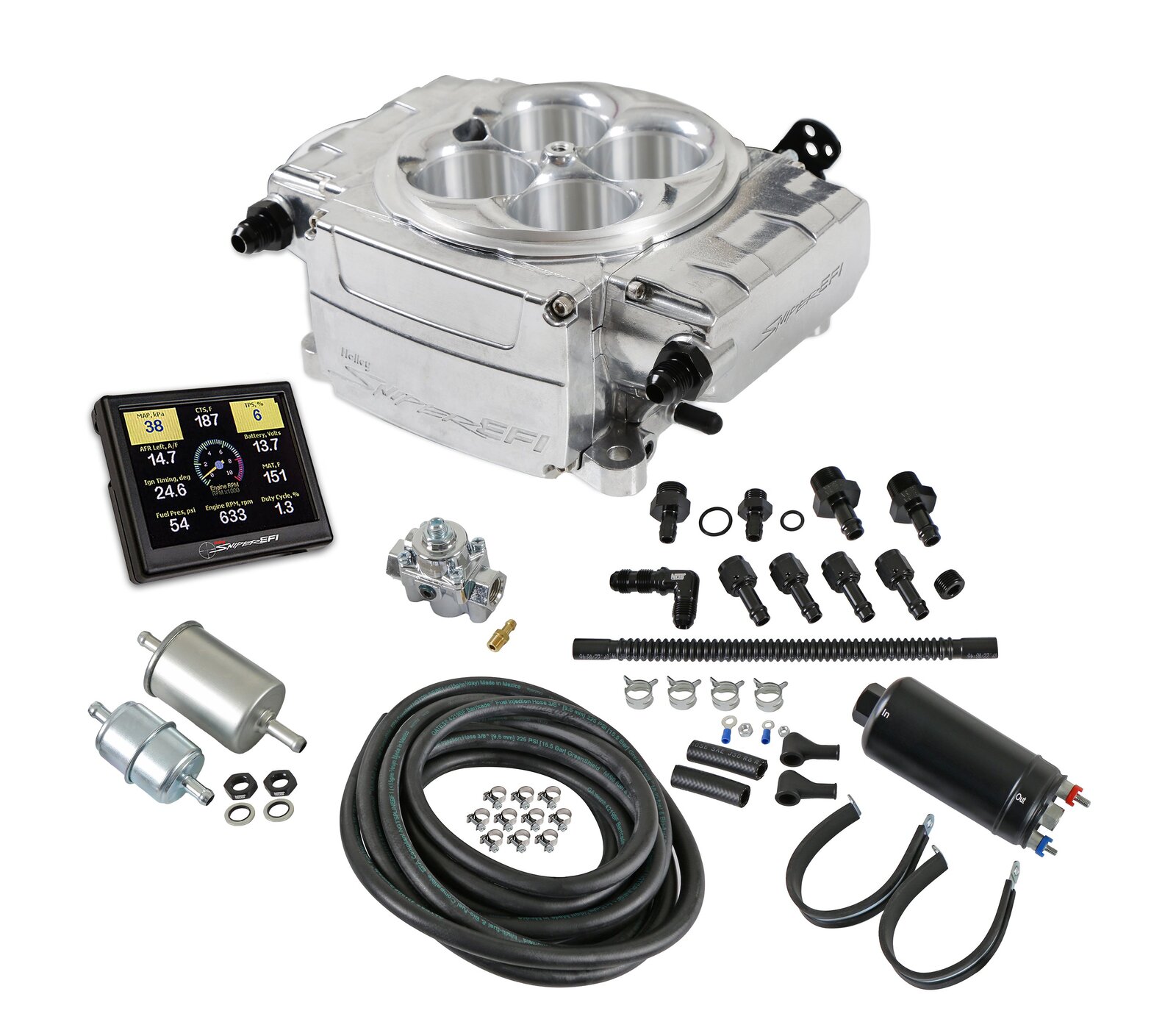

  • Available with fuel system kits: a complete fuel system consisting of: 20 ft. of 3/8 in. Vapor Guard Fuel Hose, Fuel Pump, fuel pressure regulator, filters, necessary hardware, and bulkhead fitting to return fuel into the tank
  • (NEW) Integrated transmission kick down provisions for GM TH350/400, 200-4R/700R4 and Ford C4/C6 applications
  • (NEW) “Hidden Harness” wiring harnesses exits from the rear of throttle body for a clean appearance
  • (NEW) Inputs and outputs consist of: 2x Ground Inputs, 2x Ground Outputs, 1x TPS output (0-5v), and 1x Tach Output
  • (NEW) Redesigned injector connector for improved reliability
  • (NEW) Onboard contactless magnetic TPS sensor ensures an accurate TPS reading
  • (NEW) Next Generation mil-spec style M8 positive lock connector for CAN1 and CAN2 provides the latest in CAN bus technology for a simple yet robust connection
  • (NEW) Cast-in fuel crossover from the primary to secondary fuel rail
  • (NEW) Sniper 2 throttle bodies are serialized in house, which provides each unit a birth certificate for an improved customer service and warranty experience in the event of any unit needing to be inspected
  • The included genuine Bosch LSU 4.9 wideband oxygen Sensor provides real-time fuel map learning
  • Included clamp-on oxygen sensor kit ensures a leak free oxygen sensor installation with stainless steel T-Bolt clamps and a stainless steel weldable oxygen sensor flange
  • Patent Pending

Specs:

Accelerometer Support No
Air Metering Style Speed Density
Boost Control No
Brand Holley Sniper EFI
CAN-BUS Support Yes
CFM 800
Coast Guard Approved No
Coil Per Cylinder Ignition Support No
Datalogging Support Yes
Distributor Included No
Distributor Included? No
Dry Nitrous Control No
e85 Support No
EGT Support No
Emission Code 3
Finish Shiny
Flange Style 4150
Forced Induction HP@60PSI 575
Forced Induction Support Yes
Fuel Filter Included Yes
Fuel Hose Included Yes
Fuel Injectors Included Yes
Fuel Pressure 58.5 PSI
Fuel Pressure Regulator Included Yes
Fuel Pump Flow Rating 240 LPH
Fuel Pump Included Yes
Fuel Pump Type Yes
Fuel System Master Kit
Grade Type Performance
Height 3.28"
Hyperspark Ignition Kit No
Ignition Timing Control Yes
Individual Cylinder Fuel Corrections No
Injector Size 100 lb/hr @ 58.5 PSI
Inlet / Outlet Size 9/16-18 Female O-Ring (AN 6)
Intake Manifold Included No
Knock Retard Support No
MAP Sensor 2 Bar
Max Horsepower Rating 650 Naturally Aspirated
Model 4150 EFI Conversion Throttle Body
Multi-Stage Nitrous Control No
Naturally Aspirated HP@60PSI 650
PDM No
Power Distribution Module No
Product Type Sniper EFI
Progressive Nitrous Control No
Sale Category Air and Fuel Delivery
Self-Tuning Yes
Throttle Position Sensor Included Yes
Traction Control Support No
Transmission All
User Interface 3.5 in Handheld
User-Tuneable Yes
Warranty Two Year Standard, Extended Via Product Registration
Wet Nitrous Control No
UPC 090127818916
Part Number 550-510-3XK
SKU 550-510-3XK
Barcode # 90127818916
Brand Holley Sniper
Shipping Weight 9.8500kg
Shipping Width 0.250m
Shipping Height 0.380m
Shipping Length 0.670m
