1982-1991 Blazer / Jimmy / Suburban

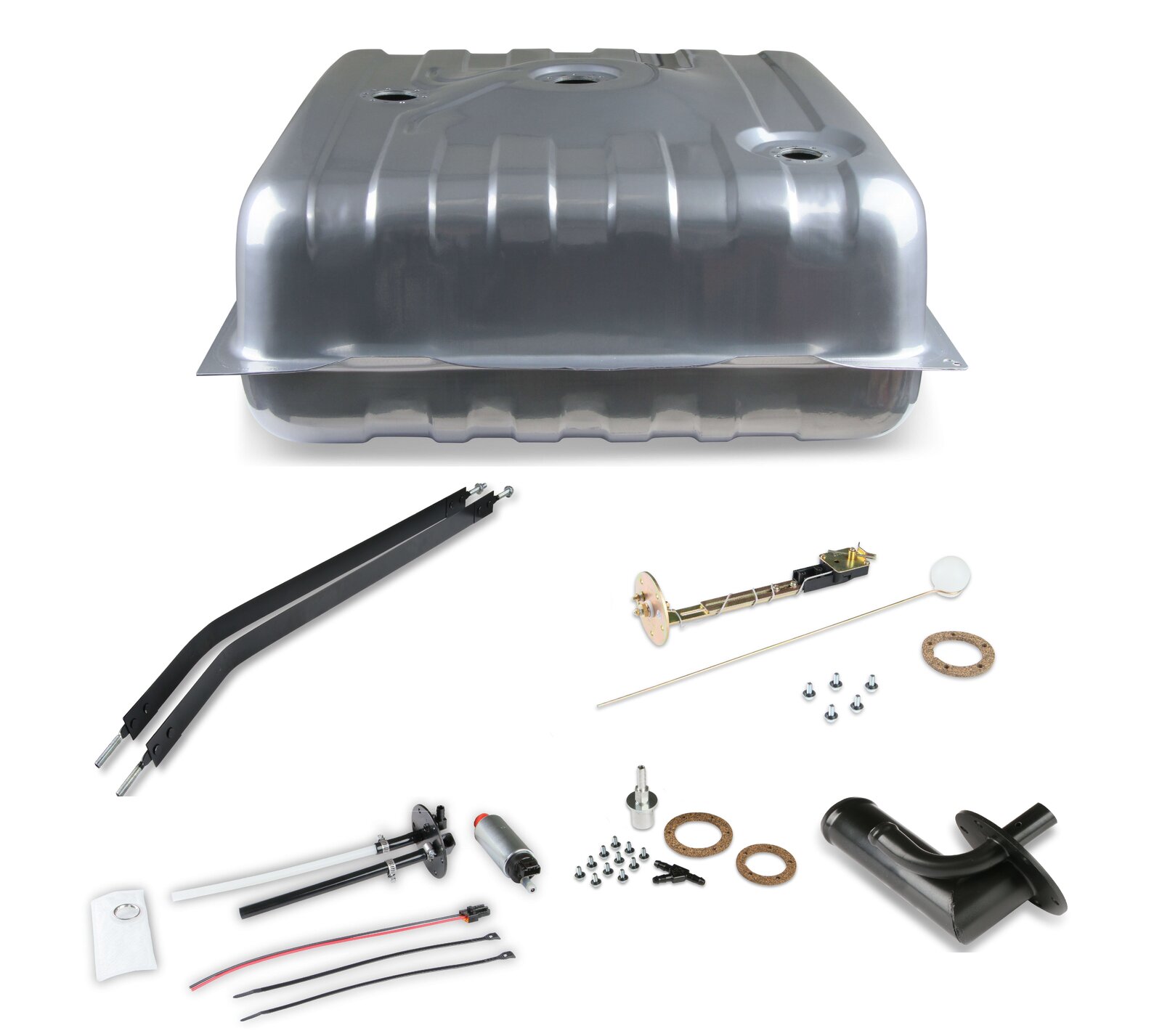

Features: • Tanks are galvanized steel then powder coated silver for total corrosion protection • 255 lph fuel pump with hanger assembly gives you the fuel you need with in-tank quietness • Sender has 1/4" NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting • Fuel level sender included with the correct Ohm range for your factory gauges • Fuel pump and sender are recessed in the tank to provide an easy installation with no modification to your car • Internal tank baffling includes a large 4.8 liter internal fuel tray to prevent fuel pump starvation • Fits and looks like an OE tank when installed. New tank straps included. 1 5/8" Filler elbow housing included • Complete bolt in solution for your EFI conversion Fuel tank is a direct fit for your application with no body modifications necessary. The kit includes the tank, a 255 lph fuel pump, fuel level sender, new tank straps, and the filler elbow housing. The tank is powder coated for corrosion resistance and great looks. The 255 LPH fuel pump supports up to 550 EFI (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw)

Specs:

Application 1982-87 Blazer / Jimmy / Suburban
Attached Sump Yes
Baffled Sump Yes
Brand Holley Sniper EFI
Color Silver
Drain Plug No
Emission Code 4
Finish Powdercoated
Free Flow LPH 255
Fuel Sending Unit Ohms 0-90 Ohms
Fuel System Compatibility Electronic Fuel Injection
Fuel System Type Gasoline
Fuel Tank Coating Powder Coated
Gallon Capacity 25
Grade Type Performance
Lock Ring Included Yes
Material Steel
Maximum Flow Rating 255 LPH
Mounting Straps Included Yes
New Straps Included Yes
O-Ring Included Yes
Product Type Fuel Tank
Resistance Ohms Empty 0 82
Resistance Ohms Full 90 82
Tank Capacity 25 GA
Tank Color Gray
Tank Material Steel
Warranty Limited 90 Day
UPC 090127074275
Part Number 19-179
SKU 19-179
Barcode # 90127074275
Brand Holley Sniper
Shipping Weight 15.6000kg
Shipping Width 0.300m
Shipping Height 0.700m
Shipping Length 0.920m
