1965-1966 Impala Belair, Coated Steel, EFI, Gas

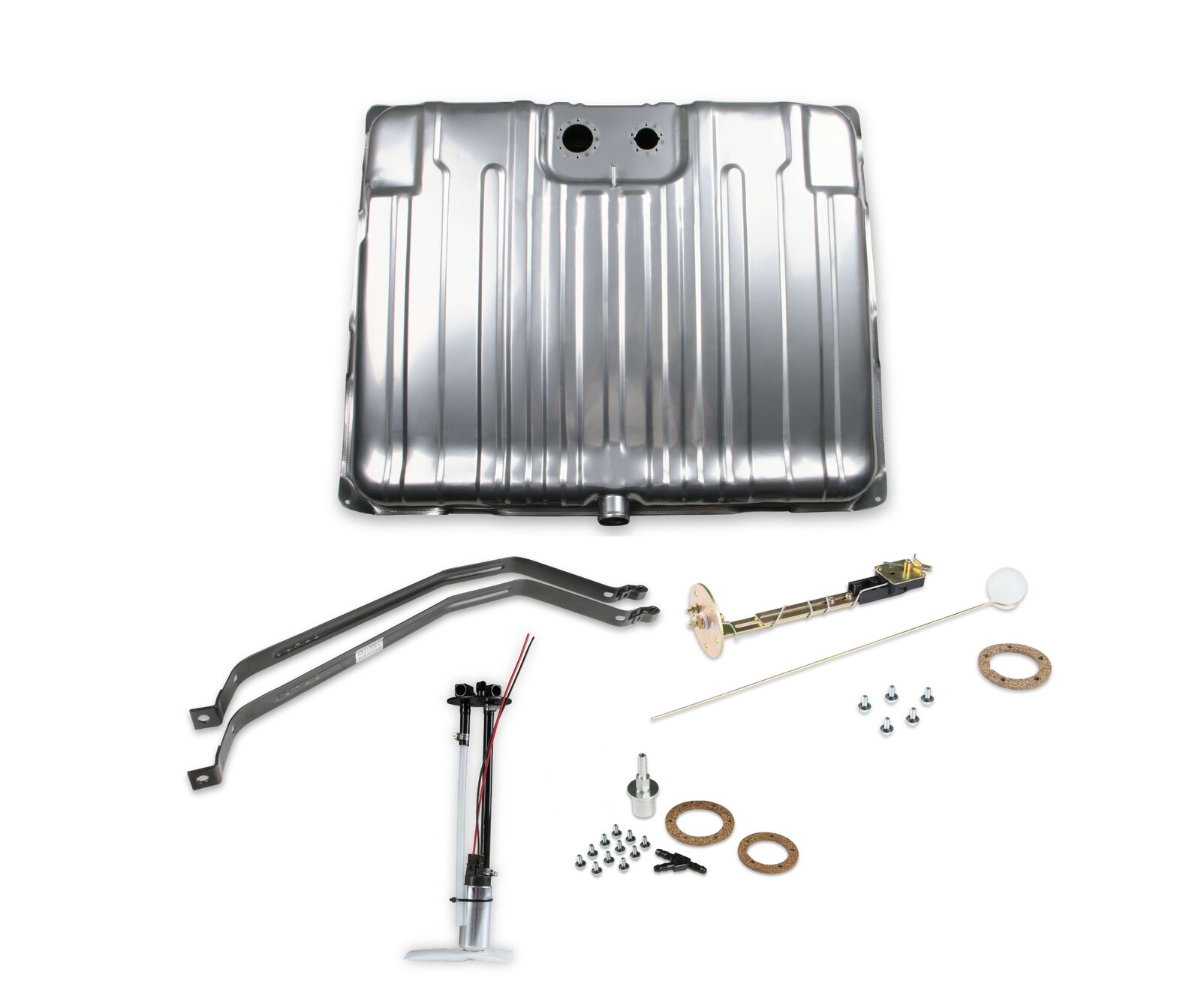

Holley and Sniper will help you to complete your EFI swap with our new EFI Conversion Fuel Tanks. Each tank is a direct fit for your application-no modifications necessary. The kit includes the tank, a 400 lph fuel pump, internal baffling, a fuel level sender, and the filler neck. The tank is powder coated for corrosion resistance and great looks. These tank kits are a complete solution for your EFI project! Supports up to 750 EFI (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw) Size is: 37-1/4" x 30" x 7-3/4" ***Hose clamps are not included for two piece filler neck. New tank straps included
Features:
- Tanks are coated galvanized steel then powder coated silver for total corrosion protection
- 400 lph fuel pump with hanger assembly gives you the fuel you need with in-tank quietness
- Sender has ¼” NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting
- Fuel level sender included with the correct Ohm range for your factory gauges
- Sender has ¼" NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting
- Fuel pump and sender are recessed in the tank to provide an easy installation with no modification to your car
- EFI style tank baffling includes a large 4.3 liter internal fuel tray to prevent fuel pump starvation
- Fits and looks like an OE tank when installed
- Complete bolt in solution for your EFI conversion
Specs:
Application | 1965-1966 Impala Belair |
---|---|
Attached Sump | Yes |
Baffled Sump | Yes |
Brand | Holley Sniper EFI |
Color | Silver |
Drain Plug | No |
Emission Code | 3 |
Finish | Powdercoated |
Free Flow LPH | 400 |
Fuel Sending Unit Ohms | 0-90 Ohms |
Fuel System Compatibility | Electronic Fuel Injection |
Fuel System Type | Gasoline |
Fuel Tank Coating | Powder Coated |
Gallon Capacity | 24 |
Grade Type | Performance |
Lock Ring Included | Yes |
Material | Steel |
Maximum Flow Rating | 400 LPH |
Mounting Straps Included | Yes |
New Straps Included | Yes |
O-Ring Included | Yes |
Product Type | Fuel Tank |
Resistance Ohms Empty | 0 82 |
Resistance Ohms Full | 90 82 |
Tank Capacity | 24 GA |
Tank Color | Gray |
Tank Material | Steel |
Warranty | Limited 90 Day |
UPC | 090127051375 |
Part Number | 19-419 |
SKU | 19-419 |
Barcode # | 90127051375 |
Brand | Holley Sniper |
Shipping Weight | 17.3200kg |
Shipping Width | 0.240m |
Shipping Height | 0.810m |
Shipping Length | 1.120m |
