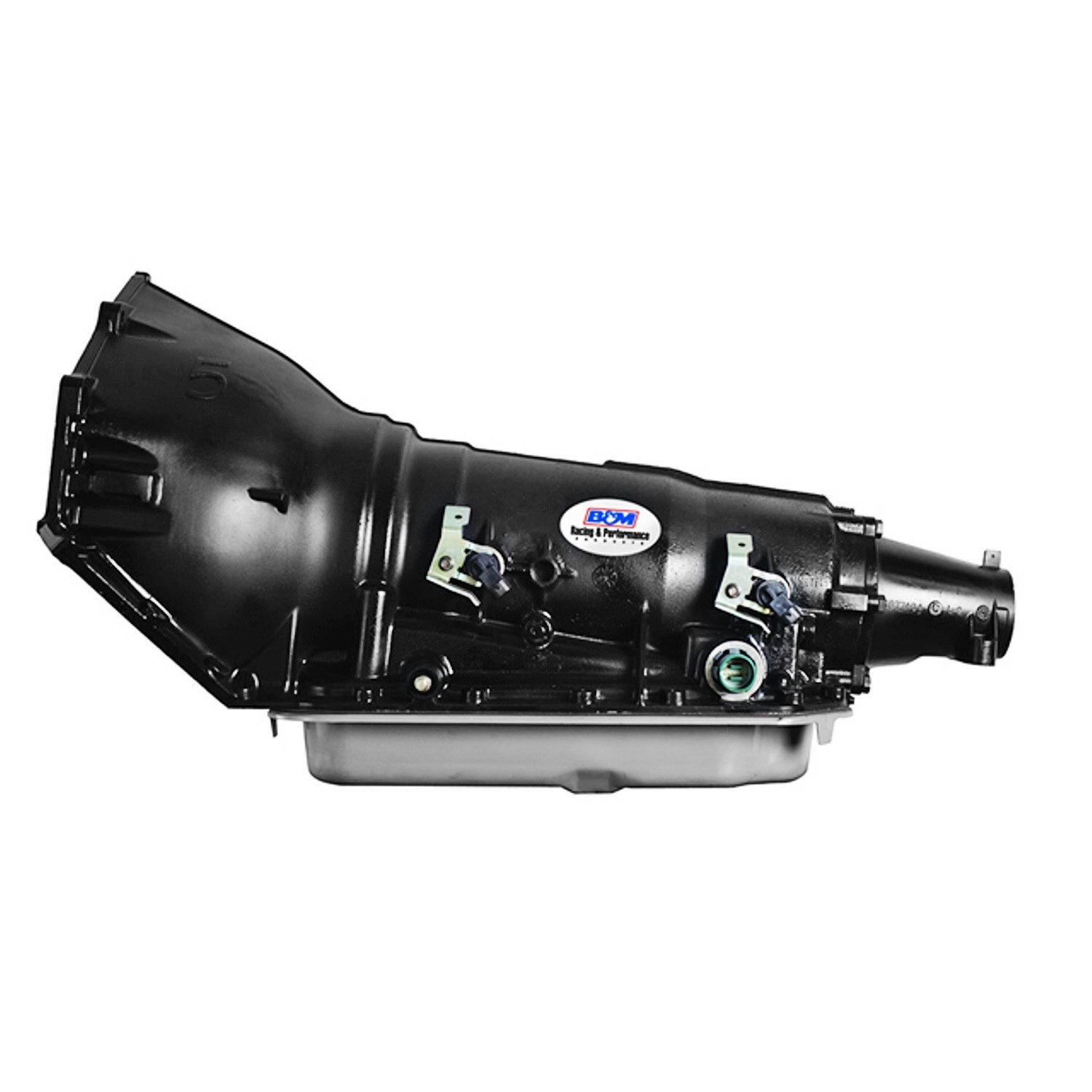

B&M Street/Strip Automatic Transmission - GM 4L80E
SKU:118001BM In Stock$7,215.00
or 4 payments of $1,803.75 with
Learn more
B&M Street/Strip Automatic Transmission - GM 4L80E (97+) 118002BM
SKU code: 118002BM
1997-2015 GM Models, 2-Wheel Drive, Automatic Shift Valve Body
B&M's Street/Strip transmission is a complete ready to run unit (less torque converter) for high performance street and mild dragstrip use. The transmission provides firm shifts and features a standard shift pattern, these are the finest available for street and strip use. The Street/Strip GM 4L80E automatic transmission fits GM models 1997-2015. Features a 34-element intermediate sprag, high energy intermediate band, new overdrive sprag assembly, new low roller assembly, performance friction materials, all new solenoids and wiring harness, recalibrated valve body, performance pump assembly, steel forward hub. Designed for a maximum of 800 horsepower and 650 ft/lbs of torque. Can be used with HGM Compushift controller for transplant applications.
Features:
- Designed for up to 800 horsepower & 650 ft/lbs of torque
- All new high performance friction plates
- Rebuilt performance pump assembly
- 34-element intermediate sprag
- High energy intermediate band
- New overdrive sprag assembly
- Fully recalibrated valve body
- New low roller assembly
- Includes front speed sensor
- Uses slip-yoke style out-put
Specs:
| 2WD/4WD | 2WD |
|---|---|
| Automotive Item Grade | High Performance |
| Brand | B&M |
| Built-In Transmission Shield | No |
| Case Material | Cast Aluminum |
| Color | Black |
| Control Type | Electronic |
| Cooler included | No |
| Core Change Applicable | No |
| Dipstick included | No |
| Disclaimer | Transmission shipped without speedometer driven gear or housing |
| Drive Type | RWD |
| Emission Code | 5 |
| Friction Plates | New |
| Gear Ratio-First | 2.48 |
| Gear Ratio-Fourth | 0.75 |
| Gear Ratio-Second | 1.48 |
| Gear Ratio-Third | 1.00 |
| Horsepower Rating (HP) | 800 |
| Input Spline Count | 35 |
| Output Spline Count | 32 |
| Part Type | High Performance |
| Product Type | Transmission |
| Reverse Gear Ratio | 2.08 |
| Sale Category | Transmission and Drivetrain |
| Torque Converter Included | No |
| Torque Rating (Ft/Lbs) | 650 |
| Transbrake | No |
| Transmission Model | 4L80E |
| Transmission Series | Street/Strip |
| Transmission Speeds | 4 |
| Transmission Type | Automatic |
| Valve Body Pattern | Forward |
| Valve Body Type | Automatic |
| UPC | 019695001650 |
| California Proposition 65 Chemical Name | Benzene |
| Chromium (hexavalent compounds) | |
| Lead | |
| Part Number | 118002BM |
| SKU | 118002BM |
| Barcode # | 19695001650 |
| Brand | B&M |
| Shipping Weight | 95.2300kg |
| Shipping Width | 0.590m |
| Shipping Height | 0.620m |
| Shipping Length | 1.020m |
