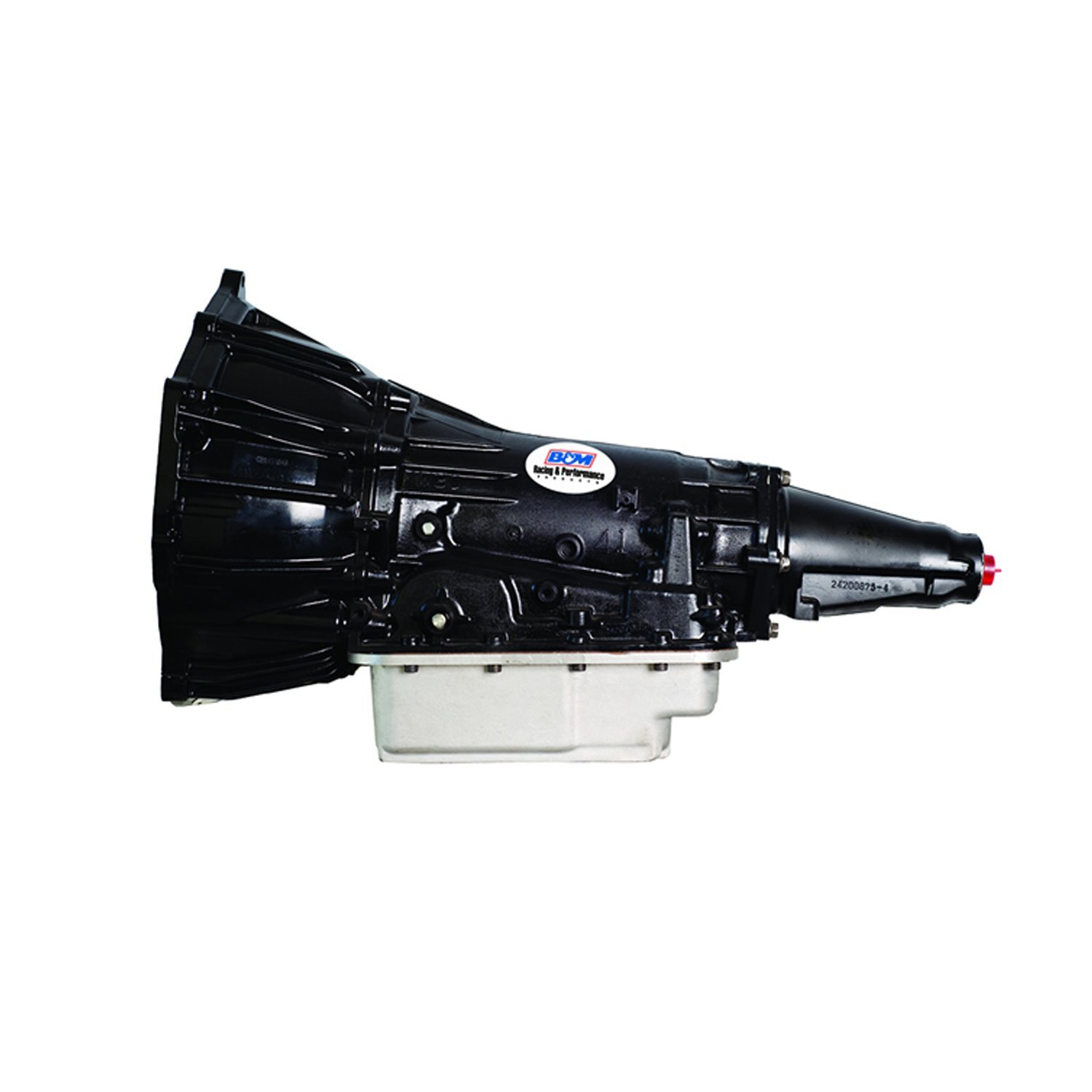

B&M Street/Strip Automatic Transmission - LS Engine 4L60E 117308
SKU code: 117308
1998-2006 GM 4L60E (Electronic) for LS Engines, 2-Wheel Drive, Automatic Shift Valve Body
The legendary B&M transmissions for street use are a complete ready to run unit (less converter) for high performance street and mild strip use. The Street/Strip GM 4L60E is a must have for those wanting a high performance overdrive transmission. The years of experience and skills that B&M has gained at the track have been applied to these transmissions. Several parts have been replaced to assure optimal performance including replacing the factory friction plates with high performance friction plates, a re-calibrated valve body, Beast Sunshell, reinforced input drum, all new solenoids, wiring harness along with a rebuilt performance pump to assure optimum flow rate even in demanding conditions. A chrome transmission pan is installed to contain the fluid, but is aesthetically pleasing as well. The list goes on and on, which makes the Street/Strip GM 4L60E transmissions a very desirable unit. The transmission provides firm shifts and features a standard shift pattern, these are the finest available for street and strip use. Notes: We strongly recommend protecting your investment by adding a B&M Hi-Tek SuperCooler with all new transmission installations. Max 550 HP / 450 Ft/Lbs.
Features:
- Includes Chrome Standard Depth Transmission Pan
- 8 Count 3-4 Friction Pack with Koleen Steels
- All New High Performance Friction Plates
- All New Solenoids & Wiring Harness
- Billet Corvette 4th Gear Servo
- Fully Re-calibrated Valve Body
- 29 Element Dual Cage Sprag
- Heavy Duty Beast Sunshell
- Seven Hole LS Bellhousing
- Reinforced Input Drum
- Forward Shift Pattern
Specs:
| 2WD/4WD | 2WD |
|---|---|
| Automotive Item Grade | High Performance |
| Brand | B&M |
| Built-In Transmission Shield | No |
| Case Material | Cast Aluminum |
| Color | Black |
| Control Type | Hydraulic |
| Cooler included | No |
| Core Change Applicable | No |
| Dipstick included | No |
| Disclaimer | Transmission shipped without speedometer driven gear or housing |
| Drive Type | RWD |
| Emission Code | 5 |
| Friction Plates | New |
| Gear Ratio-First | 3.06 |
| Gear Ratio-Fourth | 0.70 |
| Gear Ratio-Second | 1.63 |
| Gear Ratio-Third | 1.00 |
| Horsepower Rating (HP) | 500 |
| Part Type | High Performance |
| Product Type | Transmission |
| Reverse Gear Ratio | 2.29 |
| Sale Category | Transmission and Drivetrain |
| Torque Converter Included | No |
| Torque Rating (Ft/Lbs) | 450 |
| Transbrake | No |
| Transmission Model | 4L60E |
| Transmission Series | Street/Strip |
| Transmission Speeds | 4 |
| Transmission Type | Automatic |
| Valve Body Pattern | Forward |
| Valve Body Type | Automatic |
| UPC | 019695001612 |
| California Proposition 65 Chemical Name | Benzene |
| Chromium (hexavalent compounds) | |
| Lead | |
| Part Number | 117308 |
| SKU | 117308 |
| Barcode # | 19695001612 |
| Brand | B&M |
| Shipping Weight | 57.5500kg |
| Shipping Width | 0.570m |
| Shipping Height | 0.580m |
| Shipping Length | 0.870m |
