1.375-inch crank pilot, 11.4-inch bolt circle, 2200-2600 RPM stall

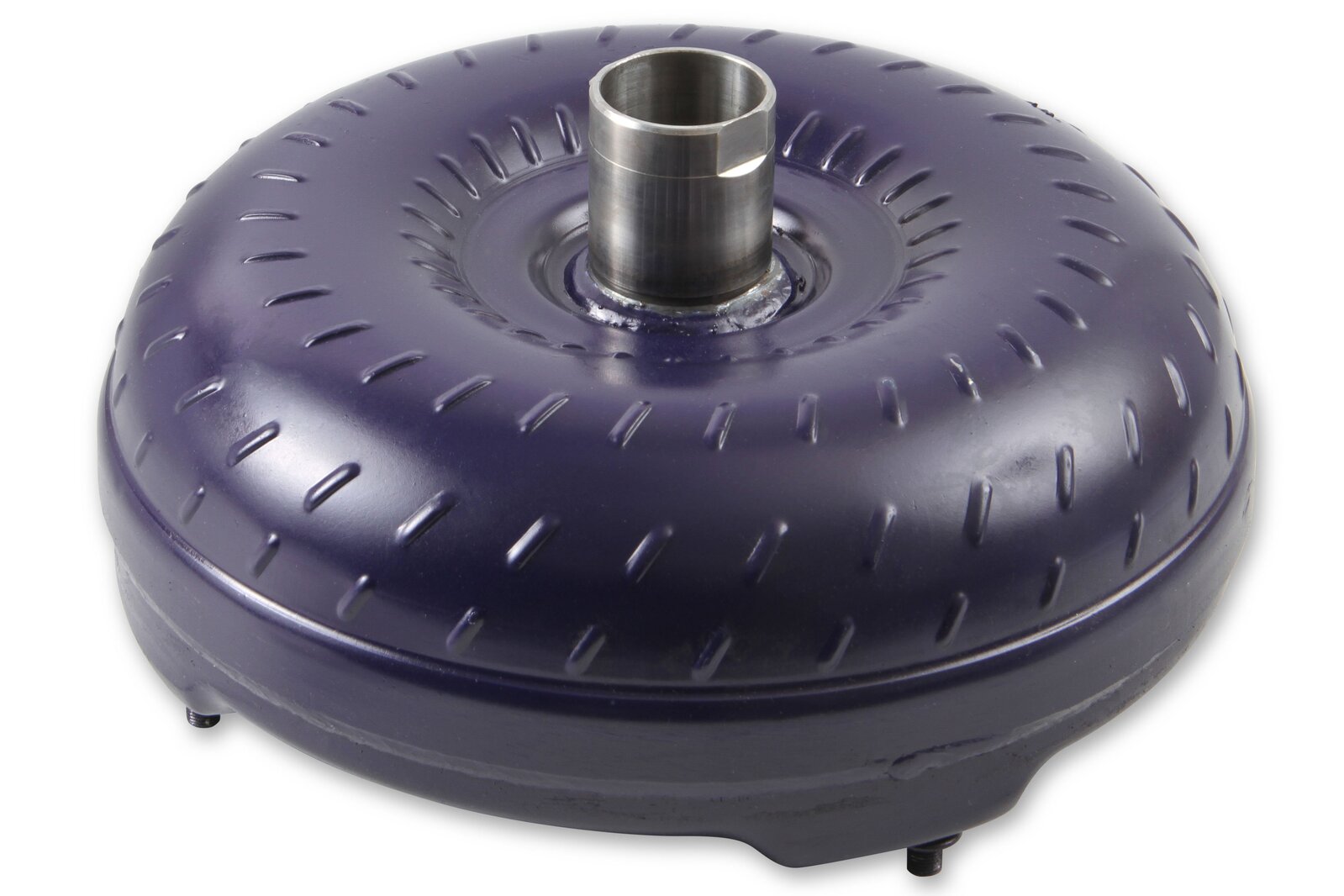

This B&M Tork Master 2400 fits 1980-92 Ford AOD transmissions with a 1.375-inch crank pilot and has a 11.4-inch bolt circle. Don't let the exceptional value fool you into thinking Tork Master Converters are not packed with lots of quality features, making them the best value-priced street performance converters money can buy. These converters perform best when paired with stock to modified engines up to 350hp/350 ft lbs of torque, and lighter weight applications, like street rods. The Tork Master will provide noticeably quicker launches and harder acceleration while maintaining normal daily driving qualities. Upgrades like a new precision alloy steel pump drive tube, needle thrust bearing when factory equipped, new thrust washer between turbine and cover when required, and pressure tested and fully balanced by expertly trained technicians. Notes: Higher stall converters can generate more heat, so we highly recommend adding a transmission cooler. Not recommended for big block, supercharged, plate-type nitrous oxide or trans-brake applications. The product images shown are for illustration purposes only and may not be an exact representation of the product.

Features:

  • New Needle Thrust Bearing When Factory Equipped
  • Quicker Launches and Harder Acceleration
  • New Precision Alloy Steel Pump Tube
  • Fully Balanced and Pressure Tested
  • B&M Quality & Durability
  • Retains Lock-up Feature

Specs:

Additional Contents New needle bearing and thrust washer
Automotive Item Grade High Performance
Bolt Circle Diameter (in) 11.4
Brand B&M
Emission Code 5
Flexplate Change Needed No
Furnace Brazed No
Input Spline 23/35
Lockup Yes
Material Steel
Product Type Automatic Transmission Torque Converter
Stall 2300-2500
Stall Speed 2,300-2,500
Stall Torque Ratio 2300 to 2500 RPM stall
Transmission AOD
UPC 019695404383
California Proposition 65 Required No
Part Number 40438
SKU 40438
Barcode # 19695404383
Brand B&M
Shipping Weight 14.8300kg
Shipping Width 0.190m
Shipping Height 0.350m
Shipping Length 0.380m
