Dimensions 11" x 8-1/2" x 1-1/2" with 1/2-Inch NPT Inlet/Outlet

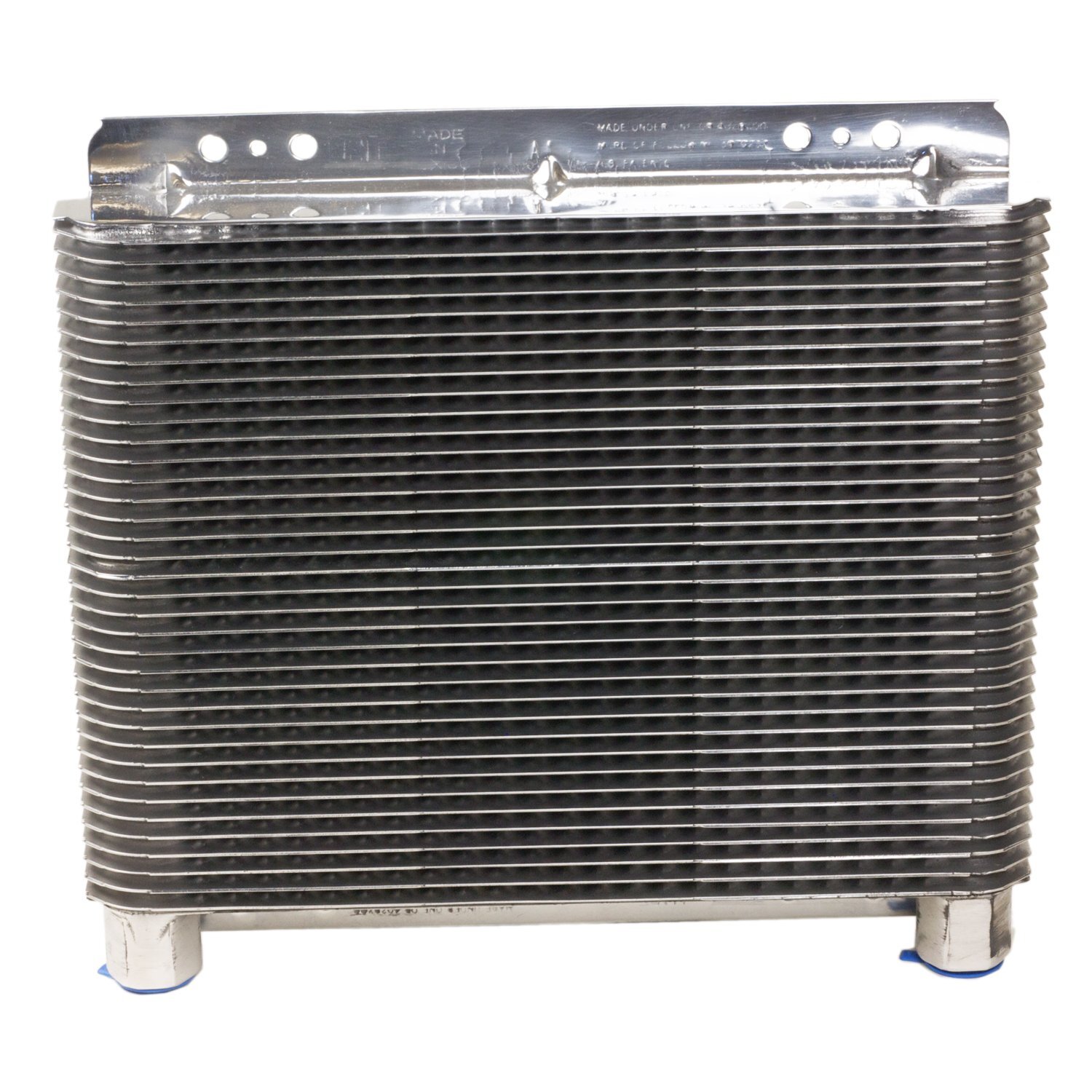

Our B&M Hi-Tek SuperCoolers feature a stacked plate design which is up to 30% more efficient than tube and fin designs and have 15% less flow restriction resulting in maximum cooling efficiency. The cooler features built-in attachment points, making mounting the cooler a breeze and the cooler is suitable for many fluids including transmission fluids, engine oil, and power steering fluid. This large polished SuperCooler has a BTU rating of 20,500 BTU's. The hose fitting size for this cooler is 1/2-inch NPT and can be mounted with fittings located up, down or sideways. The SuperCooler features durable brazed aluminum construction and is pressure tested to 200 PSI. This cooler is recommended for high performance vehicles, street rods and full size trucks modified 4, 6 and V8 cylinder engines.

Features:

  • More Efficient than Ordinary Tube and Fin Coolers
  • Larger Size for High Performance Applications
  • Stronger and More Resistant To Damage
  • Accepts 1/2-inch NPT Male Fittings
  • Rugged Stacked-Plate Design
  • Polished Show Car Finish

Specs:

Brand B&M
BTU Rating 20,500
Color Polished
Core Design/Type Stacked Plate
Core Material Aluminum
Depth (in) 1.5
Design Type Stacked Plate
Emission Code 5
Height (in) 8
Inlet Attachment Type Female Threads
Inlet Size 1/2 NPT
Material Aluminum
Outlet Attachment Type Female Threads
Outlet Size 1/2 NPT
Pressure Test 200 psi
Product Type Automatic Transmission Oil Cooler
Row Quanity 40
Width (in) 11
UPC 019695702724
California Proposition 65 Chemical Name Chromium (hexavalent compounds)
  Lead
California Proposition 65 Required Yes
Part Number 70272
SKU 70272
Barcode # 19695702724
Brand B&M
Shipping Weight 1.3600kg
Shipping Width 0.050m
Shipping Height 0.280m
Shipping Length 0.350m
