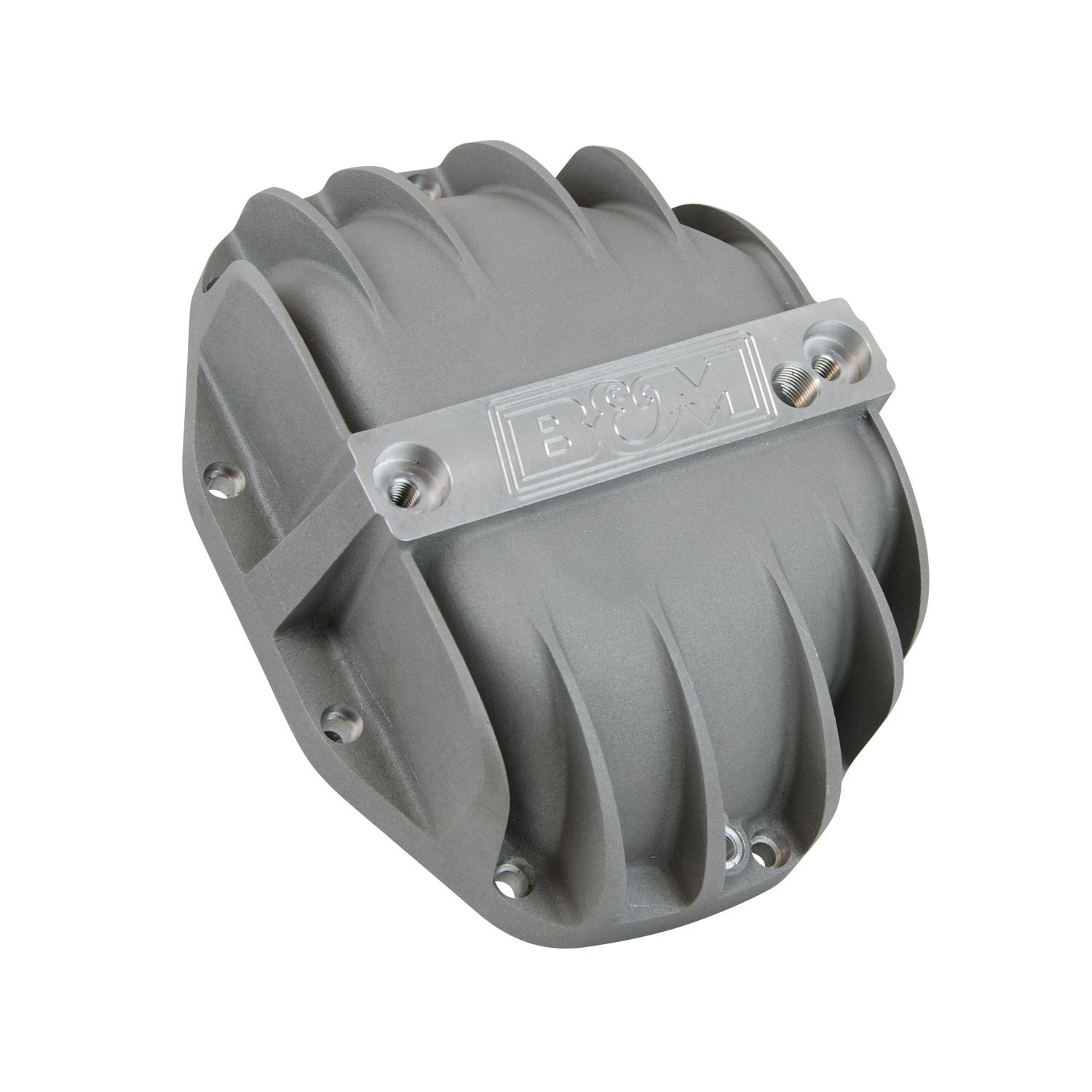

Dana 80 Differential Cover.

Our engineers designed the line of Hi-Tek differential covers to not only look good but address a number of weaknesses of the factory stamped steel covers. First, they started by constructing the covers of thick A356.0-T6 aluminum, which dissipates heat much faster than the factory steel unit keeping the fluid temperature lower under high-stress loads vs. a steel cover. Then for added durability, we added a reinforced center bar for extra strength along with load bolts to help prevent bearing cap deflection under severe loads. The internal shape of the cover retains the smooth round back internally to help keep the fluid flow going over the ring gear to properly lubricate the gears and bearings. Additional features include a magnetic drain plug for catching ferrous metal particles, machined B&M logo and all necessary hardware and easy to follow detailed instructions for a quick and simple installation you can do at home. Note: Gasket not included.

Features:

  • Load Bolts Provide Additional Support to Bearing Caps
  • Magnetic Drain Plug for Easy Servicing
  • Additional .75-quart Fluid Capacity
  • A356.0-T6 Aluminum Construction
  • Over 65 Years of B&M Quality
  • Lifetime Limited Warranty
  • Machined B&M Logo

Specs:

Bolt Count 10
Bolt Pattern Dana 80
Brand B&M
Call Out Size (in) 3.8
Carrier Main Cap Support Yes
Color/Finish Raw Aluminum
Drain Plug Included Yes
Emission Code 5
Filler Plug Included Yes
Gasket Included No
Material A356.0-T6 Aluminum
Product Type Differential Cover
Sale Category Transmission and Drivetrain
Thickness (in) 3.8
UPC 019695103156
California Proposition 65 Chemical Name Chromium (hexavalent compounds)
California Proposition 65 Required Yes
Part Number 10315
SKU 10315
Barcode # 19695103156
Brand B&M
Shipping Weight 4.9800kg
Shipping Width 0.140m
Shipping Height 0.360m
Shipping Length 0.360m
