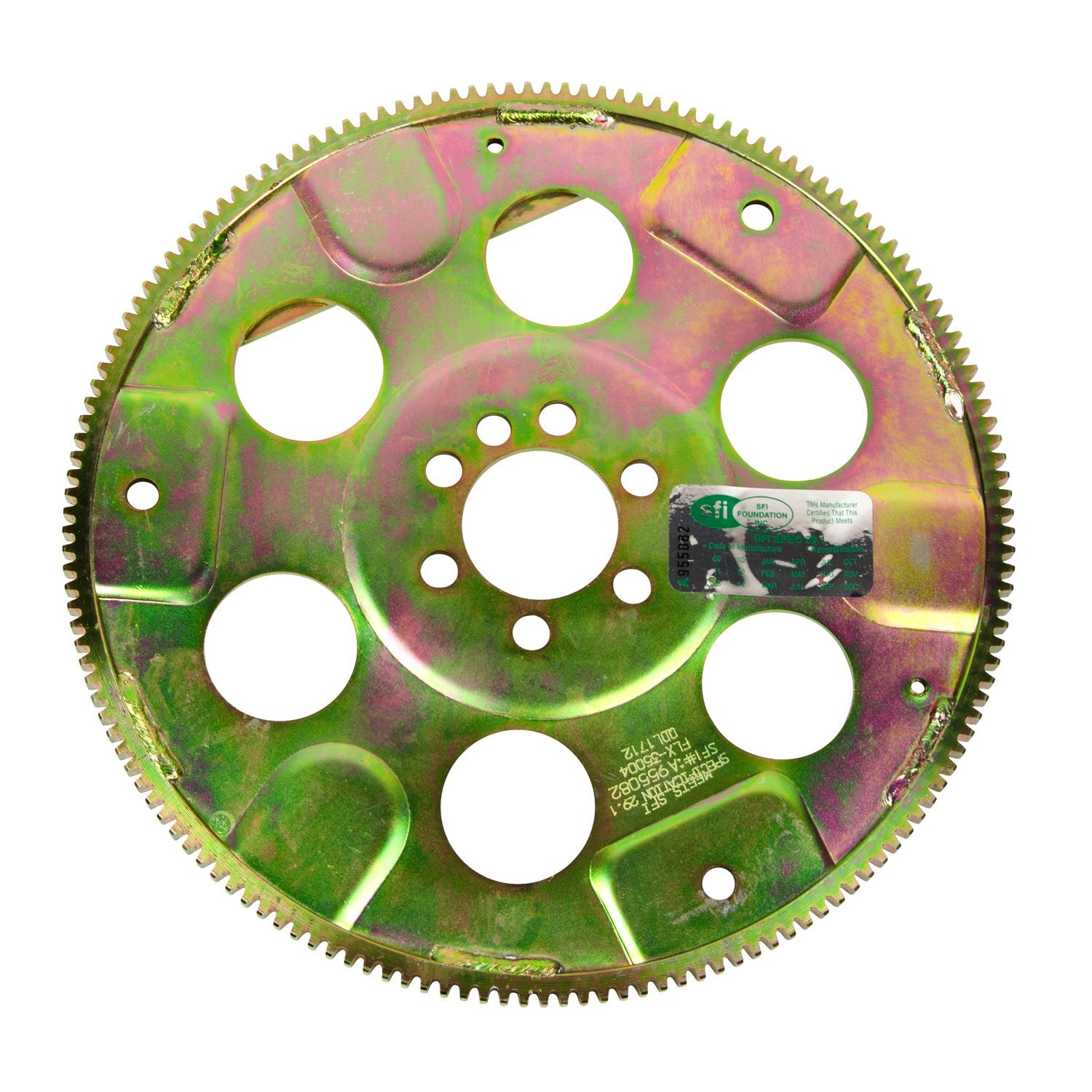

1986-1997 Chevrolet Small block externally balanced engines, 153 tooth.

As performance levels increase, an O.E. style flexplate just won't cut it and a stronger option is a necessity to prevent transmission and/or converter failure. B&M has you covered with our high performance flexplate designed for 1986-1997 small block Chevy V8 engines (externally balanced) with one piece rear main seal. Features include high tensile strength steel construction to resist elongation and cracking, 10.75-inch bolt pattern, 153 tooth ring gear with double-sided welds for added strength and comes with SFI 29.1 safety certification insuring the ultimate in safety and performance. The assembly is then Zinc plated and treated with a Chromate Conversion Coating for added corrosion resistance and durability. B&M SFI approved flexplates are ideal for extreme duty race applications as well as street cars, tow vehicles or other vehicles needing the added protection and toughness that B&M has been delivering since 1953. Compatible with Powerglide, TH350, TH400 and TH700R4 automatic transmissions.

Features:

  • NHRA and IHRA Legal For All Classes
  • Includes SFI Certification Sticker
  • Ideal For Street Applications
  • Zinc Plated Chromate Finish
  • To Extreme Duty Racing
  • Proven B&M Quality

Specs:

# of Teeth 153
Application Chevrolet
Brand B&M
Crankshaft Bolt Hole Count 6
Dual Pattern Yes
Emission Code 5
Engine Chevrolet Small Block Gen I
IHRA Legal Yes
NHRA Legal Yes
Outside Diameter (in) 12.84
Product Type Flexplates
SFI Approved Yes
SFI Certification 29.1
SFI Certification Sticker Included
Weight (lb) 6
UPC 019695202385
California Proposition 65 Chemical Name Cadmium and cadmium compounds
California Proposition 65 Required Yes
Part Number 20238
SKU 20238
Barcode # 19695202385
Brand B&M
Shipping Weight 2.7600kg
Shipping Width 0.010m
Shipping Height 0.190m
Shipping Length 0.330m
