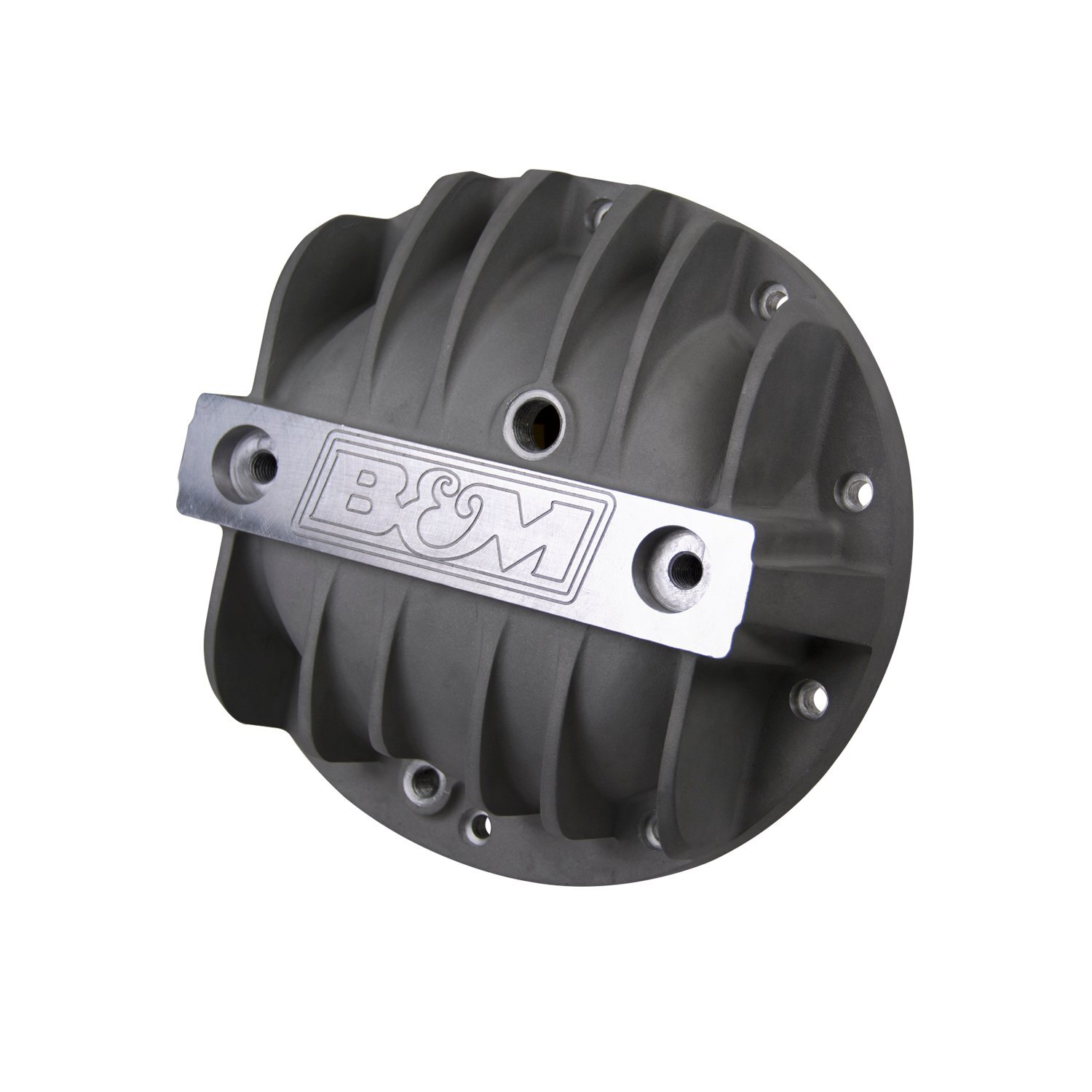

Fits 8.2-inch, 8.5-inch & 8.6-inch GM 10-Bolt

Our engineers designed the line of Hi-Tek differential covers to not only look good but address a number of weaknesses of the factory-stamped steel covers. First, they started by constructing the covers of thick A356.0-T6 aluminum, which dissipates heat much faster than the factory steel unit keeping the fluid temperature lower under high-stress loads vs. a steel cover. Then for added durability, we added a reinforced center bar for extra strength along with load bolts to help prevent bearing cap deflection under severe loads. The internal shape of the cover retains the smooth round back internally to help keep the fluid flow going over the ring gear to properly lubricate the gears and bearings. Additional features include a magnetic drain plug for catching ferrous metal particles, a machined B&M logo and all necessary hardware, and easy-to-follow detailed instructions for a quick and simple installation you can do at home.

Features:

  • Load Bolts for Additional Support for Bearing Caps
  • Magnetic Drain Plug for Easy Servicing
  • A356.0-T6 Aluminum Construction
  • Additional .4-quart Fluid Capacity
  • Over 65 Years of B&M Quality
  • Lifetime Limited Warranty
  • Machined B&M Logo

Specs:

Bolt Count 10
Bolt Pattern GM 8.2/8.5/8.6
Brand B&M
Call Out Size (in) 2.84
Carrier Main Cap Support Yes
Color/Finish Raw Aluminum
Drain Plug Included Yes
Emission Code 5
Filler Plug Included Yes
Gasket Included No
Material A356.0-T6 Aluminum
Product Type Differential Cover
Sale Category Transmission and Drivetrain
Thickness (in) 3.43
UPC 019695705022
California Proposition 65 Chemical Name Chromium (hexavalent compounds)
California Proposition 65 Required Yes
Part Number 70502
SKU 70502
Barcode # 19695705022
Brand B&M
Shipping Weight 3.8300kg
Shipping Width 0.140m
Shipping Height 0.360m
Shipping Length 0.360m
