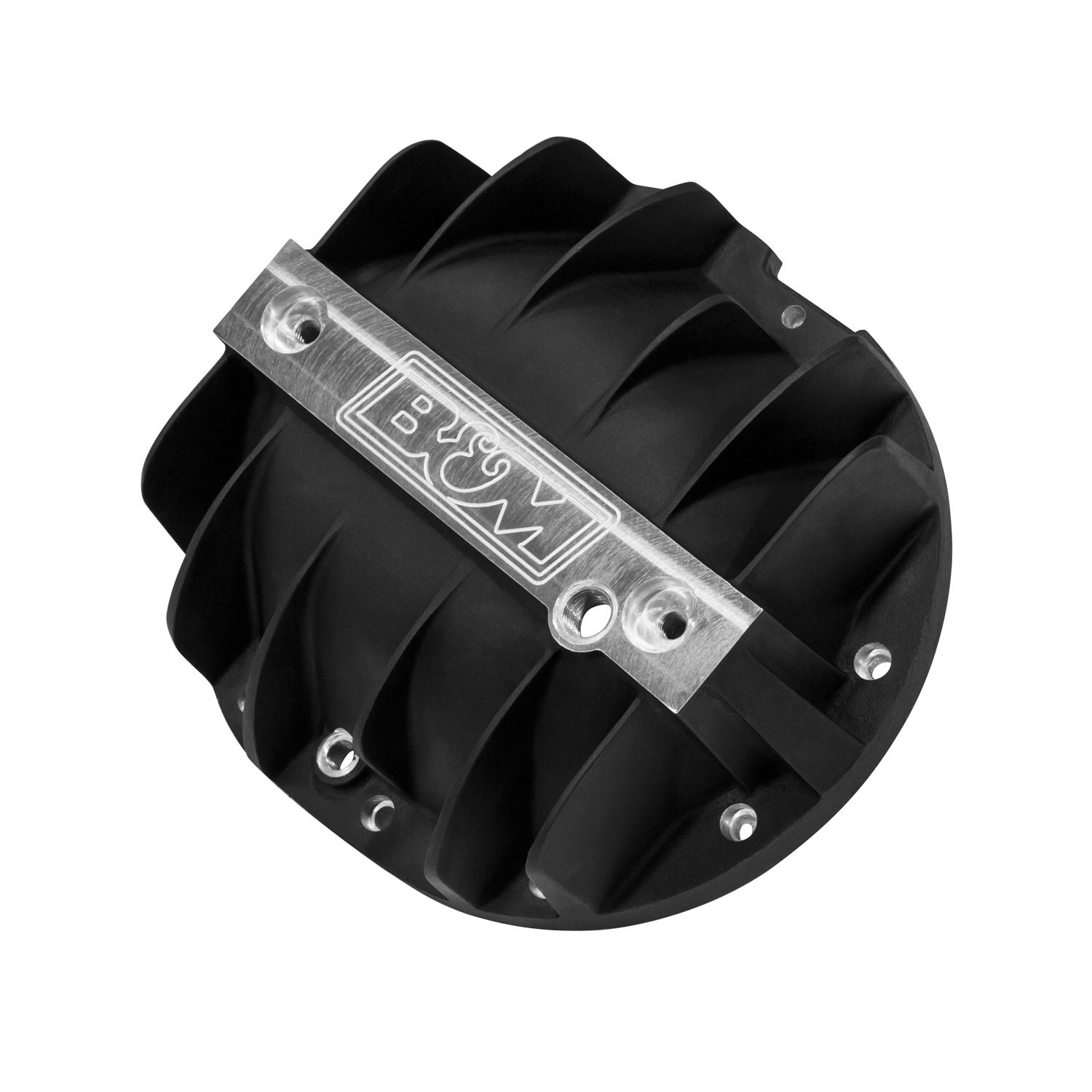

B&M Hi-Tek Aluminum Differential Cover for AAM 9.5/9.76 - Black 71506
SKU code: 71506
Fits Silverado/Sierra 1500, SUV, and Savana/Express 2500 or 3500 with SU7 Differential
Our engineers designed the line of Hi-Tek differential covers to not only look good but address a number of weaknesses of the factory-stamped steel covers. First, they started by constructing the covers of thick A356.0-T6 aluminum, which dissipates heat much faster than the factory steel unit keeping the fluid temperature lower under high-stress loads vs. a steel cover. Then for added durability, we added a reinforced center bar for extra strength along with load bolts to help prevent bearing cap deflection under severe loads. The internal shape of the cover retains the smooth round back internally to help keep the fluid flow going over the ring gear to properly lubricate the bearings, the ring and pinion gears. Additional features include a magnetic drain plug for catching ferrous metal particles, MIL-Spec (MIL-A-8625) black anodized finish, machined B&M logo, and all necessary hardware and easy-to-follow detailed instructions for a quick and simple installation you can do at home.
Features:
- Load Bolts for Additional Support for Bearing Caps
- Magnetic Drain Plug for Easy Servicing
- A356.0-T6 Aluminum Construction
- MIL-Spec Black Anodized Finish
- Lifetime Limited Warranty
- Additional Fluid Capacity
- Machined B&M Logo
Specs:
Additional Fluid Capacity (qts) | Yes |
---|---|
Bolt Count | 12 |
Bolt/Studs Included | Yes |
Brand | B&M |
Call Out Size (in) | 3.55 |
Carrier Main Cap Support | Yes |
Color/Finish | Black Anodized |
Differential Cover Bolt Pattern | AAM 9.5/9.76 |
Differential Thickness (in) | 4 |
Drain Plug Included | Yes |
Emission Code | 5 |
Filler Plug Included | Yes |
Gasket Included | No |
Material | A356.0-T6 Aluminum |
Product Type | Differential Cover |
Sale Category | Transmission and Drivetrain |
UPC | 019695952655 |
California Proposition 65 Chemical Name | Chromium (hexavalent compounds) |
California Proposition 65 Required | Yes |
Part Number | 71506 |
SKU | 71506 |
Barcode # | 19695952655 |
Brand | B&M |
Shipping Weight | 5.1700kg |
Shipping Width | 0.140m |
Shipping Height | 0.220m |
Shipping Length | 0.360m |
