Fits 2017-2024 Ford F-150, Expedition, Explorer, Bronco, Ranger, and Lincoln Navigator, Aviator with 10R80 or 10R60 Transmissions

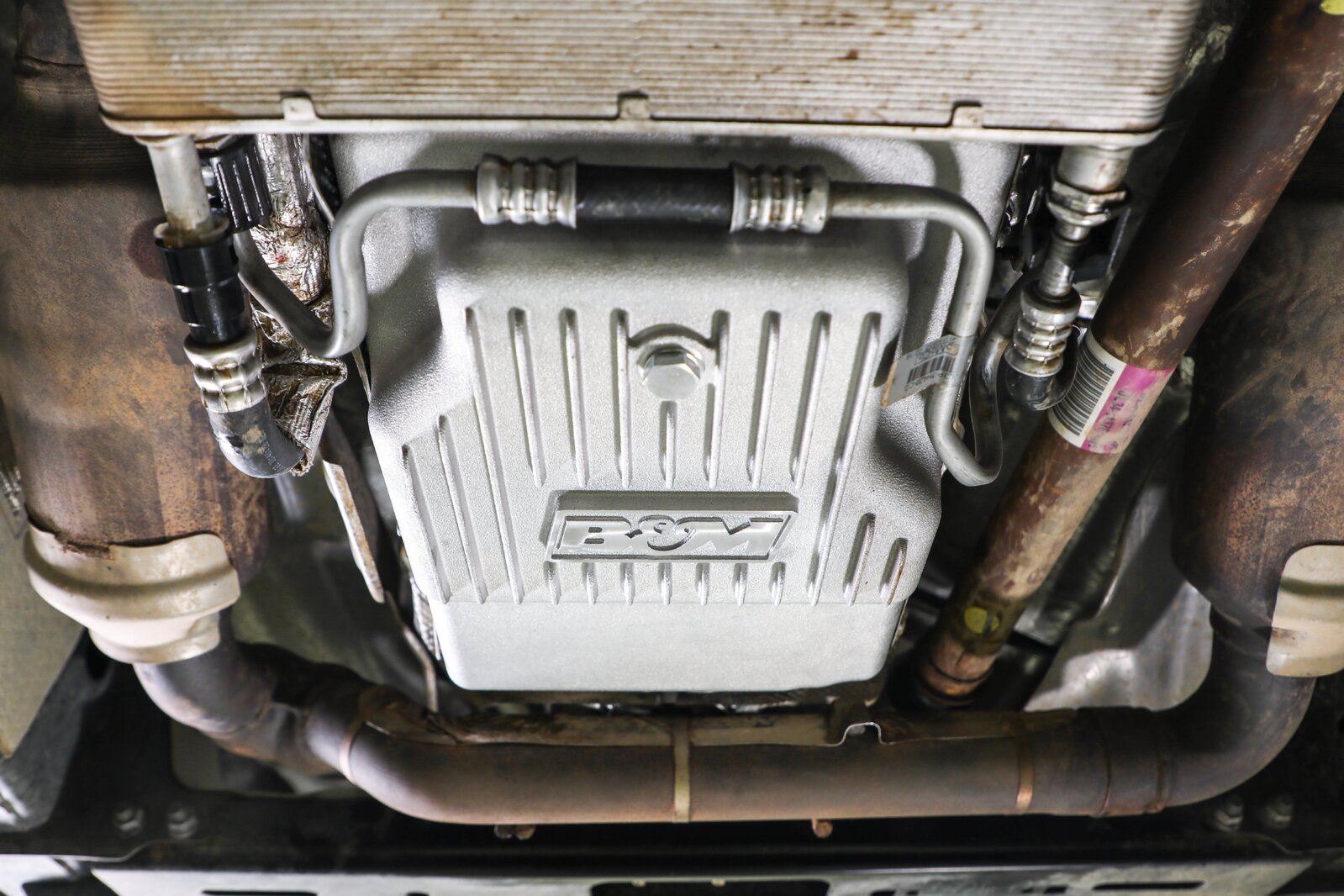

Our Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick internal and external fins, adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 2 quarts over the stock O.E. pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures and prolonging the life of your transmission, transmission fluid, and corresponding components. Other features of this popular pan include a drain port with a magnetic drain plug for clean and easy servicing. Also includes a 1/8-inch NPT temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing, or racing. Includes detailed instructions with all necessary hardware for an easy at-home installation. Note: 10R80 transmissions do not come with a dipstick from the factory to check the fluid level. As a solution, B&M offers an optional locking dipstick part #22200 to measure transmission fluid level. Also available in a black anodized finish (B&M Part #71400).

Features:

  • Drain Port with Magnetic Drain Plug for Easy Servicing
  • Durable A356 Aluminum Construction
  • Features a Temperature Sensor Port
  • Additional 2-Quart Fluid Capacity
  • Lifetime Limited Warranty
  • Over 65 Years of B&M Experience and Quality
  • Increased Cooling Properties
  • Hardware Included
  • Easy Installation

Specs:

Additional Fluid Capacity (qts) 2
Bolt Count 21
Bolt/Studs Included Yes
Brand B&M
Color/Finish Natural
Drain Plug Included Yes
Drain Plug Type Magnetic
Emission Code 5
Filler Plug Included No
Gasket Included No
Material A356.0-T6 Aluminum
Product Type Automatic Transmission Pans
Sale Category Transmission and Drivetrain
Temp Sensor Port Yes
Transmission 10R80
Transmission Type Automatic
UPC 090127857632
California Proposition 65 Chemical Name Chromium (hexavalent compounds)
California Proposition 65 Required Yes
Part Number 70400
SKU 70400
Barcode # 90127857632
Brand B&M
Shipping Weight 4.9800kg
Shipping Width 0.190m
Shipping Height 0.320m
Shipping Length 0.510m
