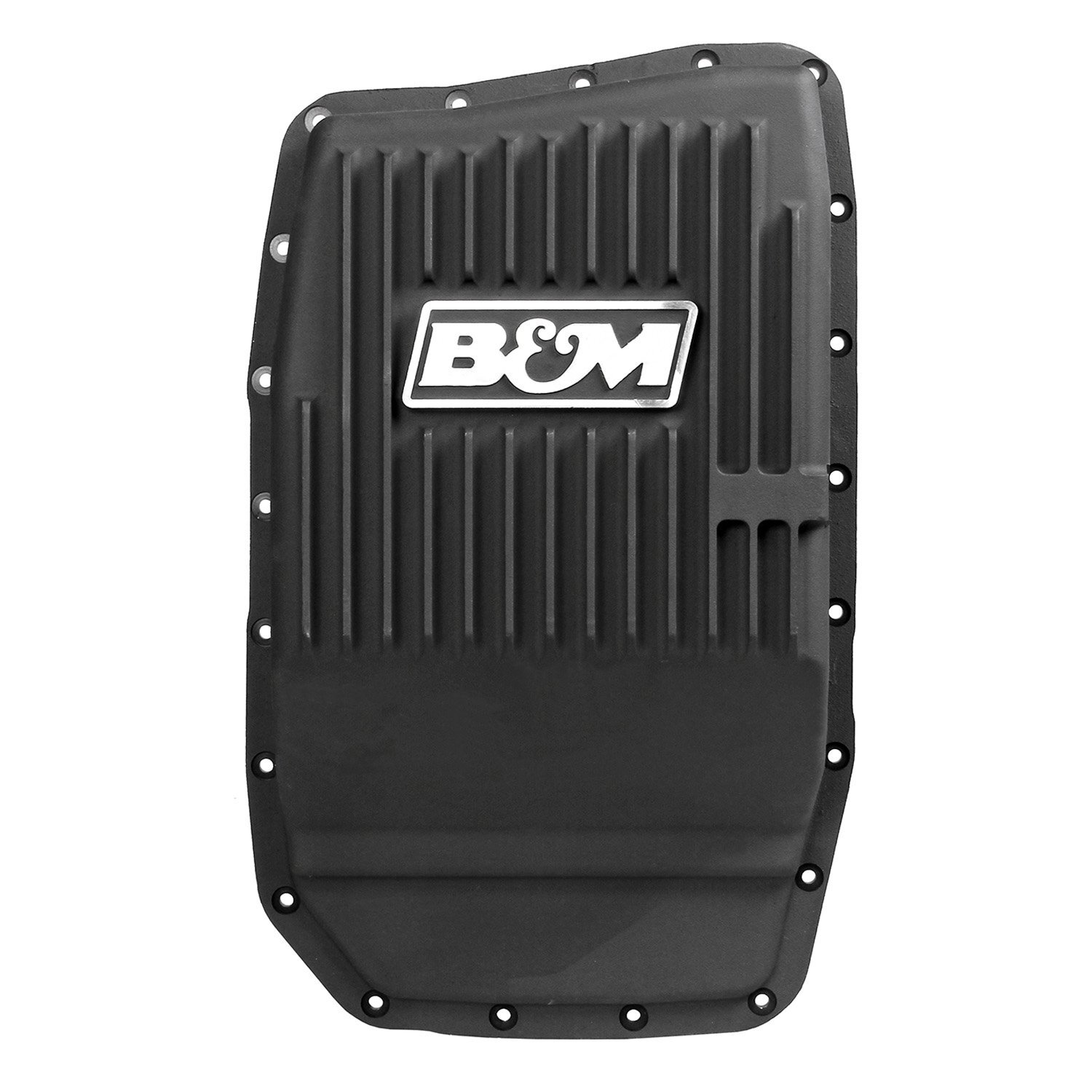

B&M Hi-Tek Deep Transmission Pan - Black Aluminum 70394
SKU code: 70394
Fits 2009-2021 Ford F-150 with 6R80 transmission & 2017-2021 Ford F-250 trucks with 6R100 transmission.
Our Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick internal and external fins, adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 3.25-quarts over the stock O.E. pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures prolonging the life of your transmission, transmission fluid and corresponding components. Other features for this popular pan include a drain port with magnetic drain plug for clean and easy servicing. Also includes 1/8-inch npt temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing or racing. Includes detailed instructions with all necessary hardware for an easy at home installation. Note: 6R80 transmissions do not come with a dip stick from the factory to check fluid level. As a solution, B&M offers an optional 6R80 locking dipstick part #22200 to measure transmission fluid level. Note: Does Not Fit Mustangs.
Features:
- Drain Port with Magnetic Drain Plug for Easy Servicing
- Durable A356 Aluminum Construction
- Features a Temperature Sensor Port
- Additional 3.25-quart Fluid Capacity
- MIL-Spec Black Anodized Finish
- Lifetime Limited Warranty
- B&M Quality
Specs:
| Additional Fluid Capacity (qts) | 3.25 |
|---|---|
| Bolt Count | 21 |
| Bolt/Studs Included | Yes |
| Brand | B&M |
| Color/Finish | Black Anodized |
| Drain Plug Included | Yes |
| Drain Plug Type | Magnetic |
| Emission Code | 5 |
| Filler Plug Included | No |
| Gasket Included | No |
| Material | A356.0-T6 Aluminum |
| Product Type | Automatic Transmission Pans |
| Sale Category | Transmission and Drivetrain |
| Temp Sensor Port | Yes |
| Transmission | 6R100 |
| 6R80 | |
| Transmission Type | Automatic |
| UPC | 019695952785 |
| California Proposition 65 Chemical Name | Chromium (hexavalent compounds) |
| California Proposition 65 Required | Yes |
| Part Number | 70394 |
| SKU | 70394 |
| Barcode # | 19695952785 |
| Brand | B&M |
| Shipping Weight | 4.5800kg |
| Shipping Width | 0.190m |
| Shipping Height | 0.330m |
| Shipping Length | 0.500m |
