Fits 2007-2021 Toyota Tundra, 2008-2022 Sequoia, 2008-2015 Toyota Land Cruiser, and 2008-2015 Lexus LX570 - AB60 Automatic Transmission

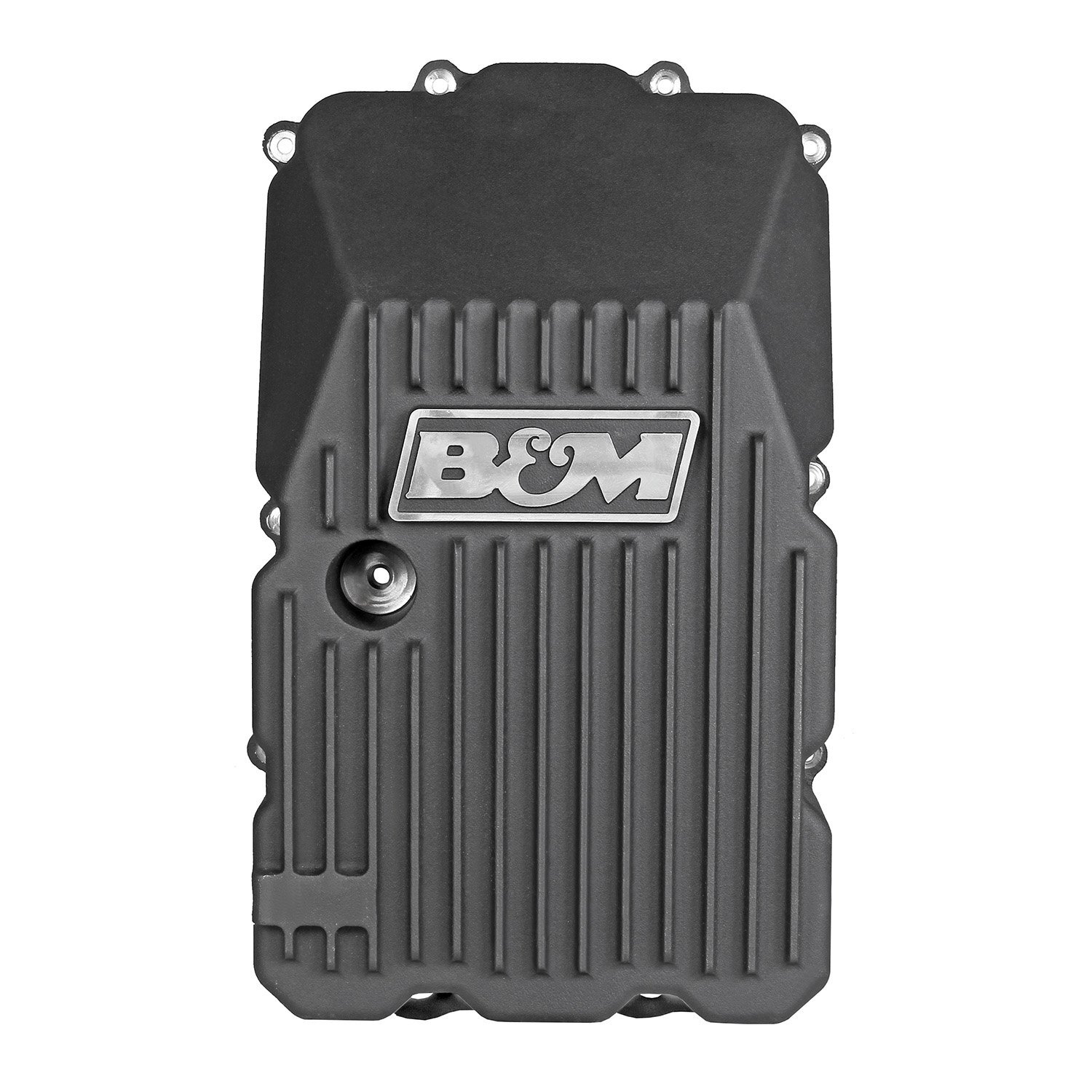

Our Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick internal and external fins, adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 3.5-quarts over the stock O.E. steel pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures prolonging the life of your transmission, transmission fluid and corresponding components. Other features for this popular pan include a drain port with magnetic drain plug for clean and easy servicing. Also includes 1/8-inch NPT temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing or racing. Includes detailed instructions with all necessary hardware for an easy at home installation.

Features:

  • Fill Port with Magnetic Drain Plug For Easy Servicing
  • 1/8 NPT Temperature Sensor Port for Temp Gauge
  • Large Magnet to Capture Metal Shavings
  • Finned A356-T6 Aluminum Construction
  • Additional 3.5-quarts of Fluid Capacity
  • MIL-Spec Black Anodized Finish
  • Over 65+ Years of B&M Quality
  • Lifetime Limited Warranty
  • Includes Hardware

Specs:

Additional Fluid Capacity (qts) 3.5
Bolt Count 12
Bolt/Studs Included Yes
Brand B&M
Color/Finish Black Anodized
Drain Plug Included Yes
Emission Code 5
Filler Plug Included No
Gasket Included No
Material A356 Aluminum
Product Type Automatic Transmission Pans
Sale Category Transmission and Drivetrain
Transmission AB60
Transmission Type Automatic
UPC 019695703936
California Proposition 65 Chemical Name Chromium (hexavalent compounds)
California Proposition 65 Required Yes
Part Number 70393
SKU 70393
Barcode # 19695703936
Brand B&M
Shipping Weight 5.8800kg
Shipping Width 0.190m
Shipping Height 0.320m
Shipping Length 0.500m
