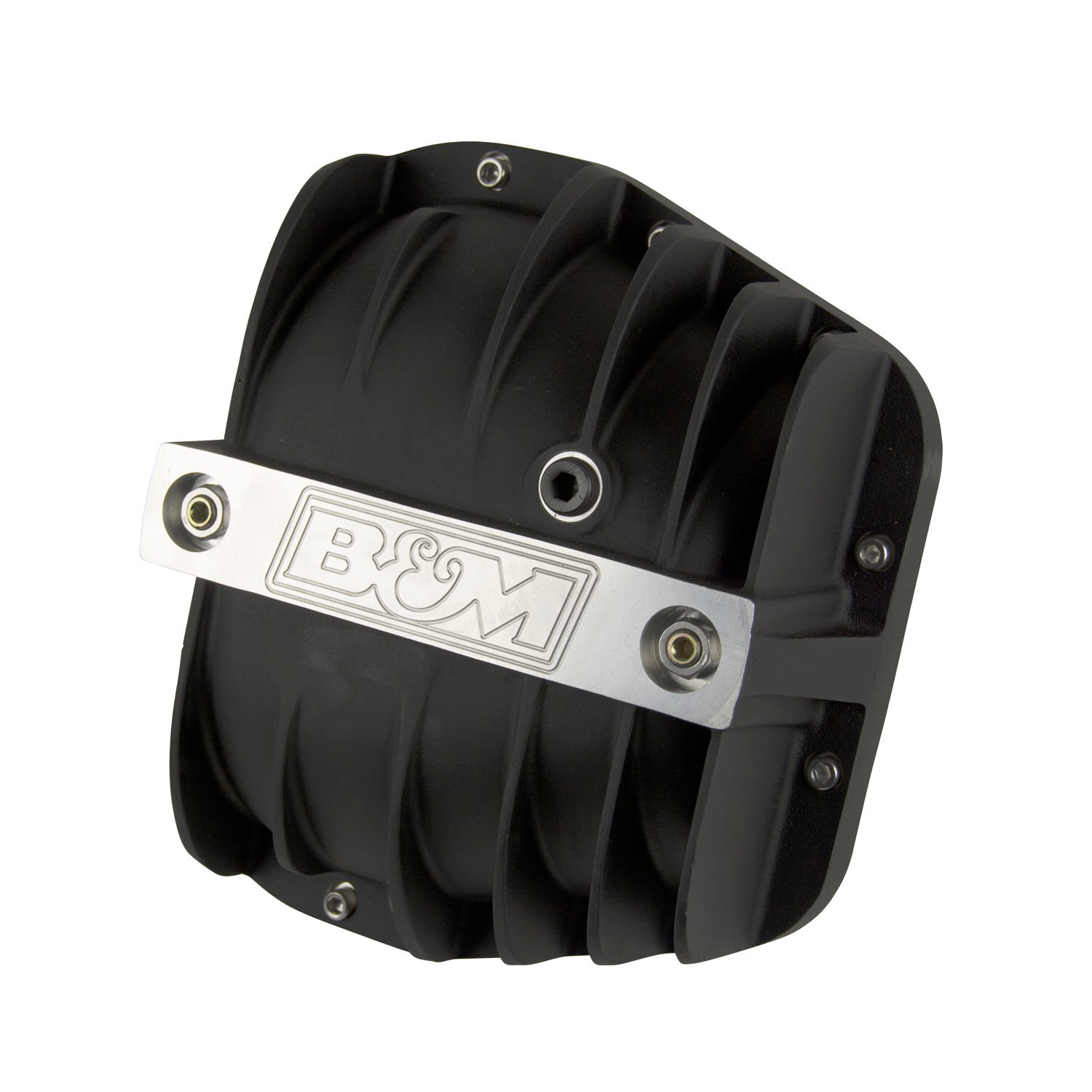

B&M Hi-Tek Aluminum Differential Cover for Ford 9.75-inch - Black 41298
SKU code: 41298
Fits 2009-2023 Ford F-150
Our engineers designed the line of Hi-Tek differential covers to not only look good but address a number of weaknesses of the factory-stamped steel covers. First, they started by constructing the covers of thick A356.0-T6 aluminum, which dissipates heat much faster than the factory steel unit keeping the fluid temperature lower under high-stress loads vs. a steel cover. Then for added durability, we added a reinforced center bar for extra strength along with load bolts to help prevent bearing cap deflection under severe loads. The internal shape of the cover retains the smooth round back internally to help keep the fluid flow going over the ring gear to properly lubricate the gears and bearings. Additional features include a magnetic drain plug for catching ferrous metal particles, MIL-Spec (MIL-A-8625) black anodized finish, machined B&M logo, and all necessary hardware and easy-to-follow detailed instructions for a quick and simple installation you can do at home. Note: Gasket not included. Refer to the ID guide and measurement diagram for specifications.
Features:
- Load Bolts Provide Additional Support to Bearing Caps
- Magnetic Drain Plug for Easy Servicing
- A356.0-T6 Aluminum Construction
- Black MIL-Spec Anodized Finish
- .5-quart Added Fluid Capacity
- Over 65 Years of B&M Quality
- Lifetime Limited Warranty
- Machined B&M Logo
Specs:
Bolt Count | 12 |
---|---|
Bolt Pattern | Ford 9.75 |
Brand | B&M |
Call Out Size (in) | 3.28 |
Carrier Main Cap Support | Yes |
Color/Finish | Black Anodized |
Drain Plug Included | Yes |
Emission Code | 5 |
Filler Plug Included | Yes |
Gasket Included | No |
Material | A356.0-T6 Aluminum |
Product Type | Differential Cover |
Sale Category | Transmission and Drivetrain |
Thickness (in) | 3.84 |
UPC | 019695412982 |
California Proposition 65 Chemical Name | Chromium (hexavalent compounds) |
California Proposition 65 Required | Yes |
Part Number | 41298 |
SKU | 41298 |
Barcode # | 19695412982 |
Brand | B&M |
Shipping Weight | 5.0100kg |
Shipping Width | 0.140m |
Shipping Height | 0.360m |
Shipping Length | 0.360m |
