OVERVIEW

AEM's Air Inlet Temperature Sensor Kits (AIT) senses the air temperature on the inlet side of the engine.

30-2014: Air Temp Sensor with 1/8" NPT Male Thread, High Performance DTM-Style Connector, Aluminum Bung, Connector & Pins
30-2010: Air Temp Sensor with 3/8' NPT Male Thread, Aluminum Bung, Connector & Pins

FEATURES

  • Weatherproof connector
  • Includes mating connector & pins
  • Senses the air temperature on the inlet side of the engine

SPECS

  • Accuracy: < 1.5°C / 2.7°F
  • Operating Temp: -20C to 150C / -4F to 302F
  • Resistive Range (Ω): See Instructions
  • Thermal Time Constant: < 15 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil
  • Sensor Body Material: Brass
  • Thread: 1/8" NPT
  • Hex Size: 1/2"
  • Installation Torque: 13.5Nm / 10 ft-lbs
  • Weight: 10g
  • Electrical Termination: Weatherproof High Performance DTM-Style connector. Includes Mating Connector, Pins & Wire Seals

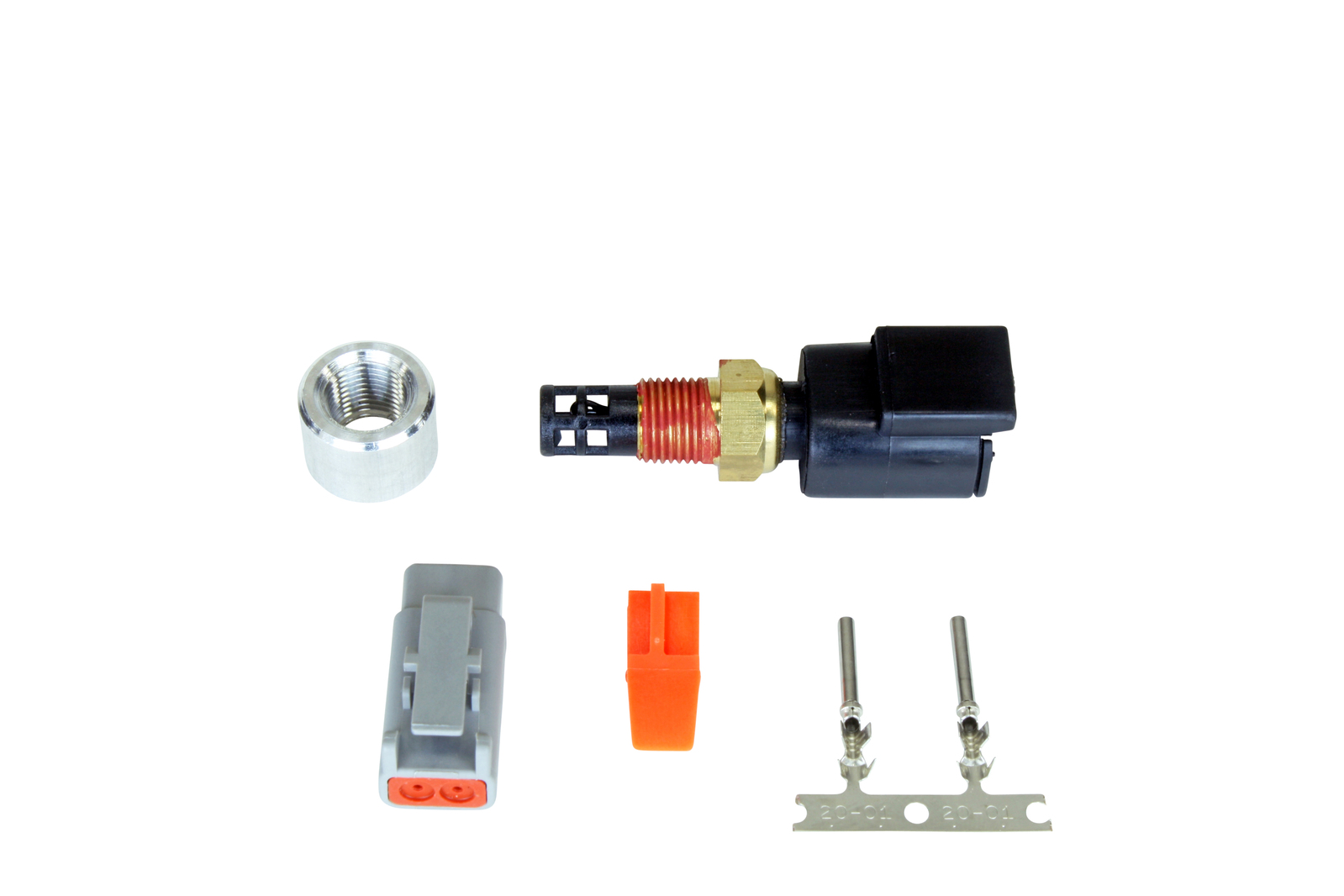

  • Includes: Air Temp Sensor High Performance DTM-Style, 1/8" NPT Alumium Bung, Mating Connector, Pins & Wire Seals
SKU 30-2014
Brand AEM
